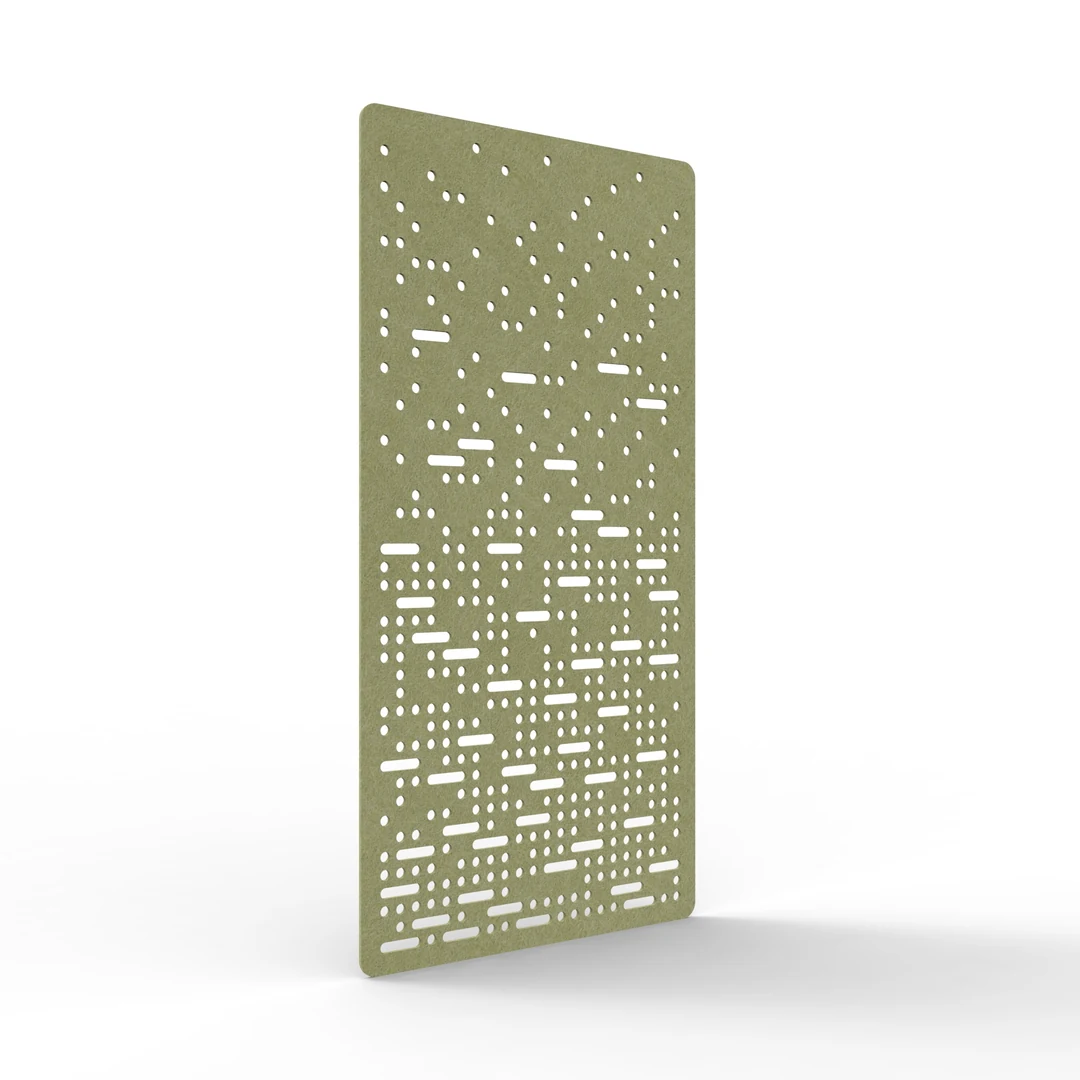

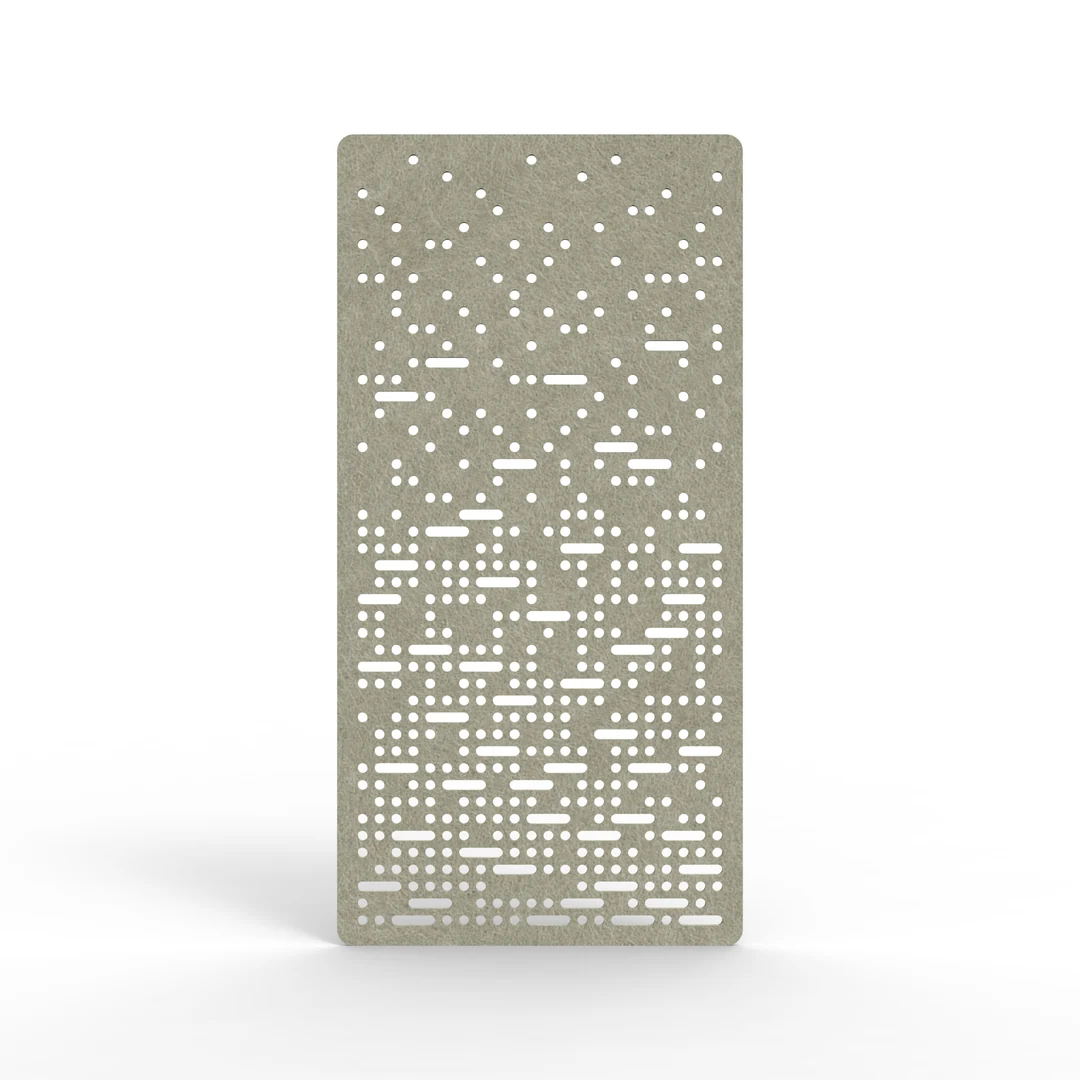

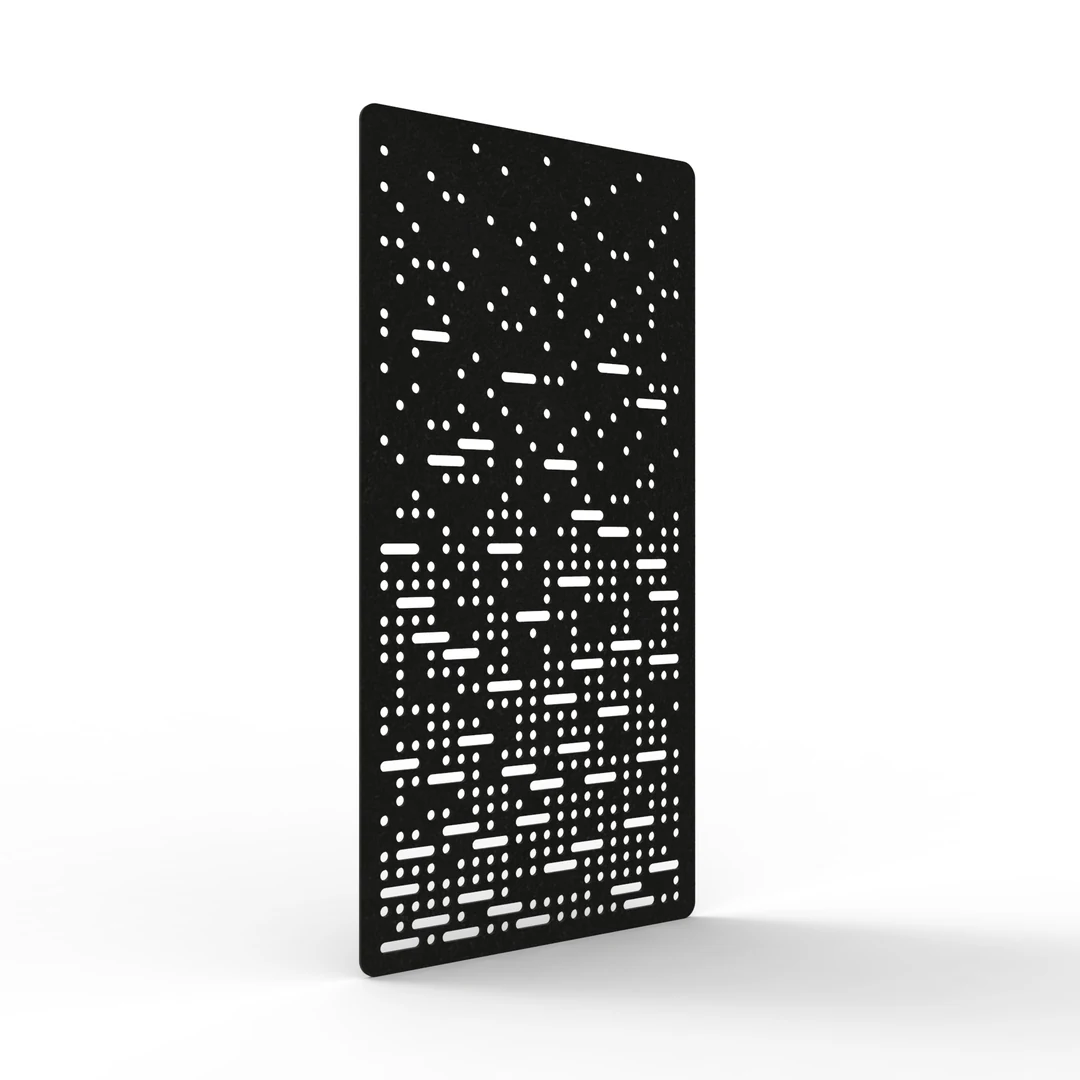

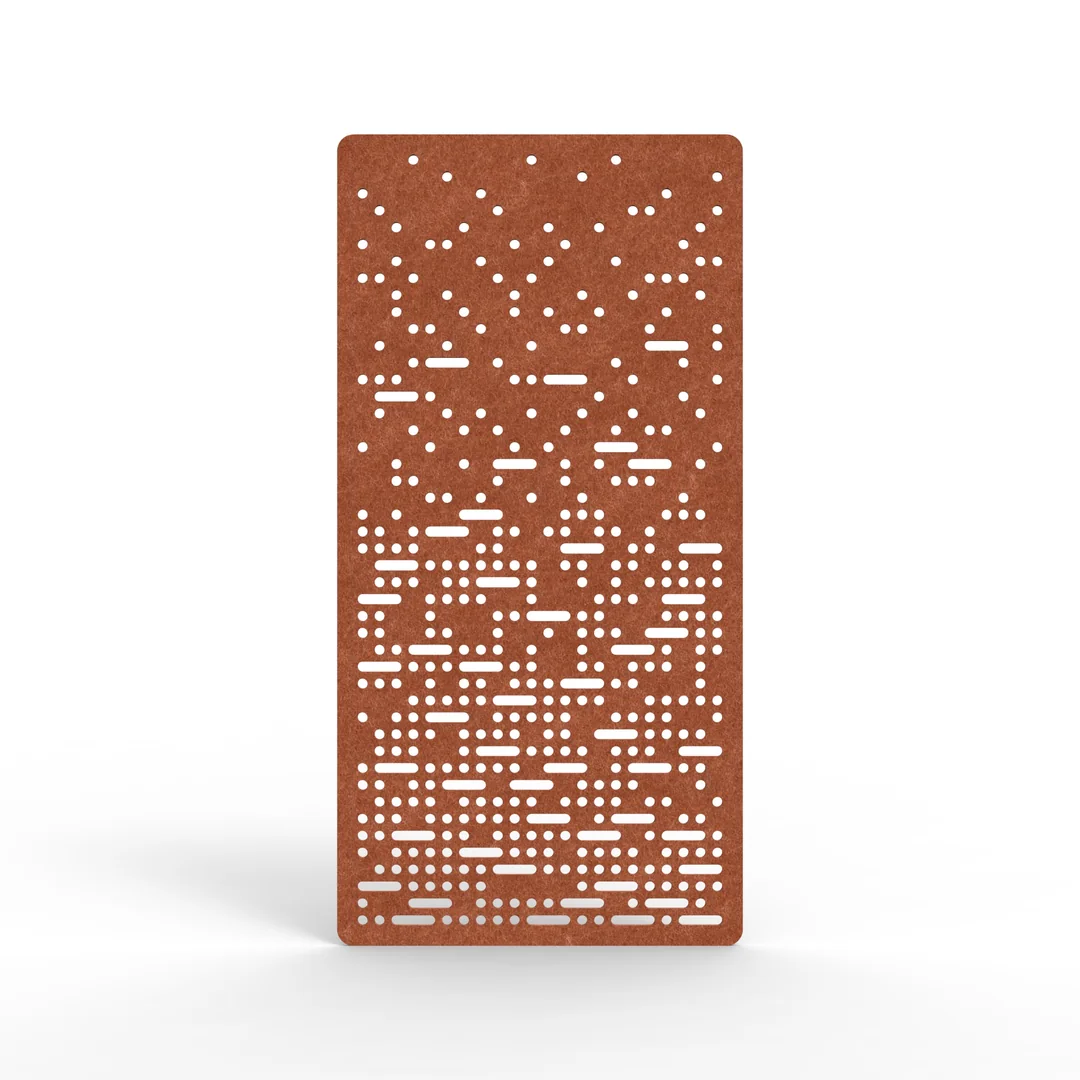

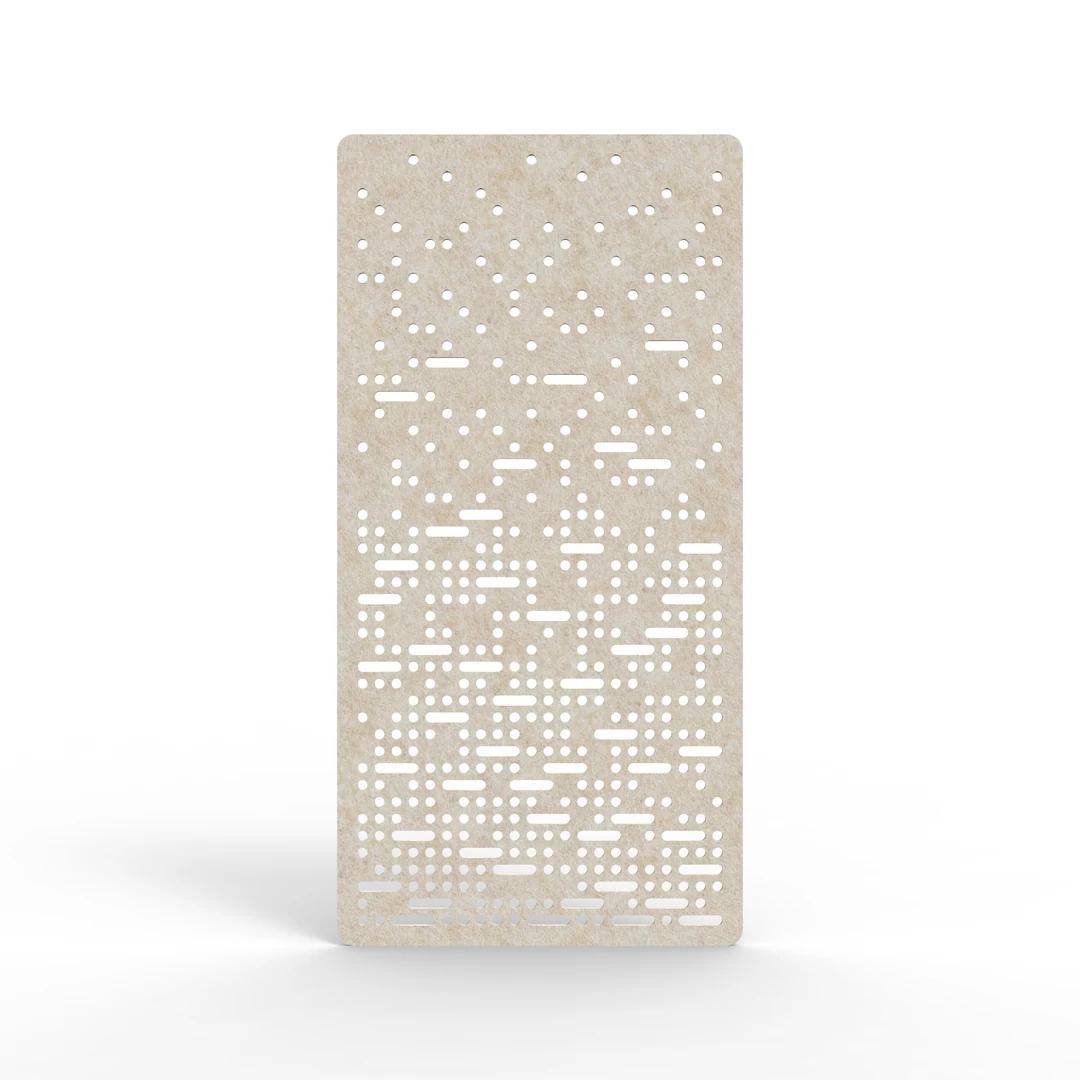

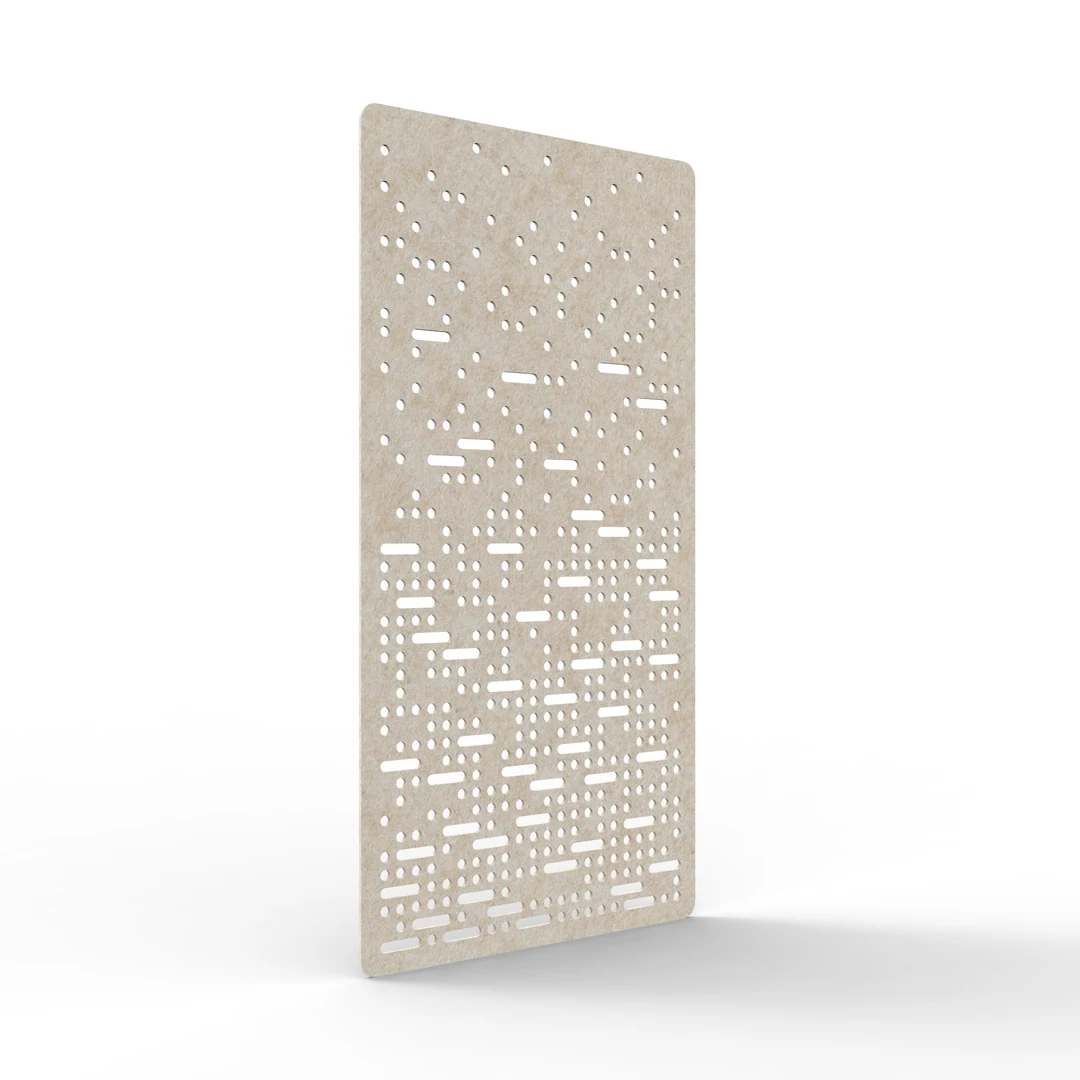

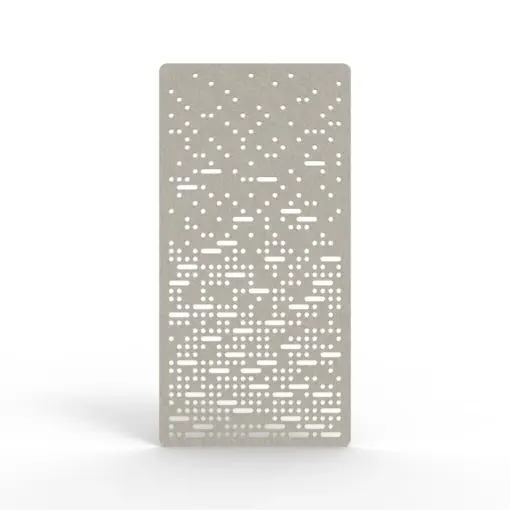

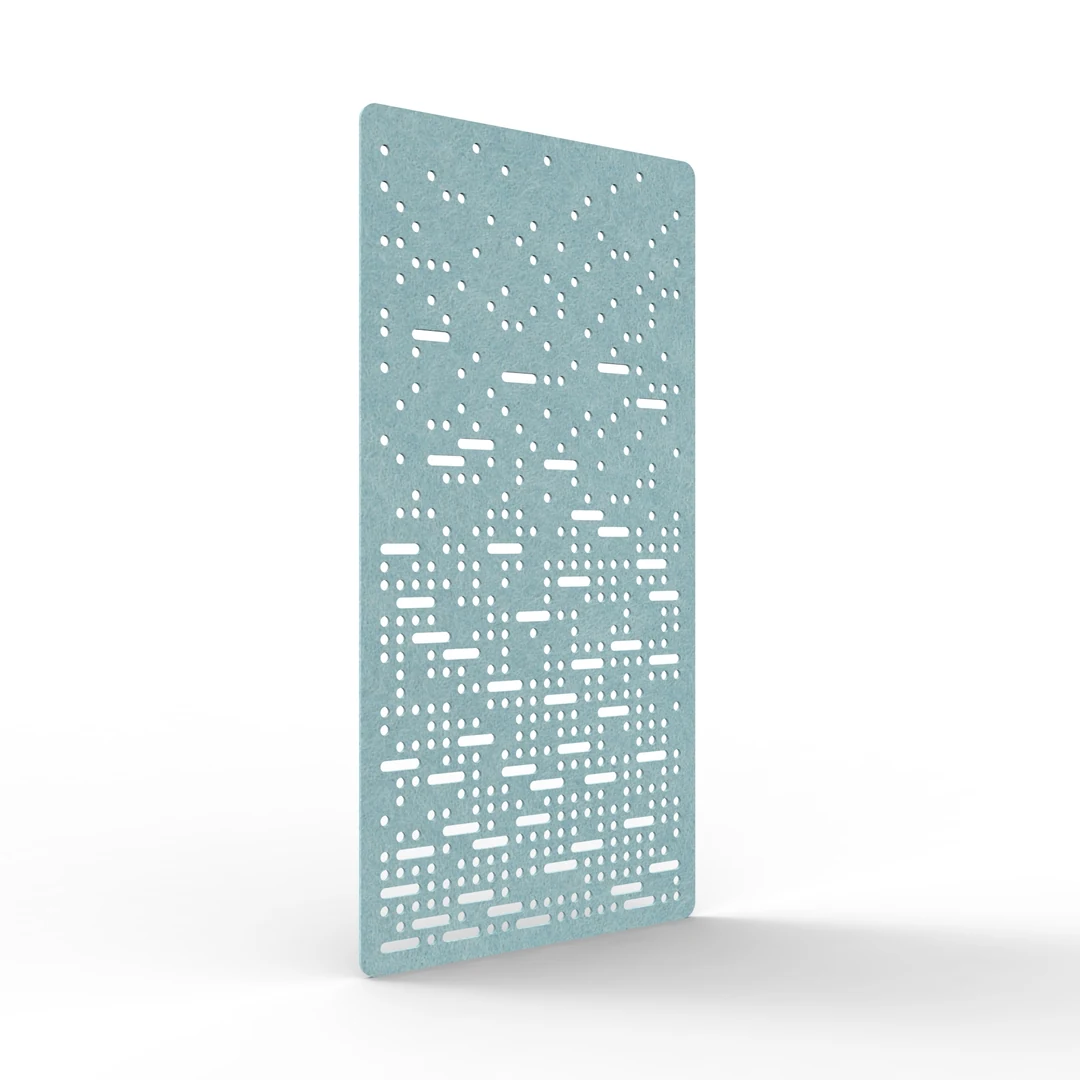

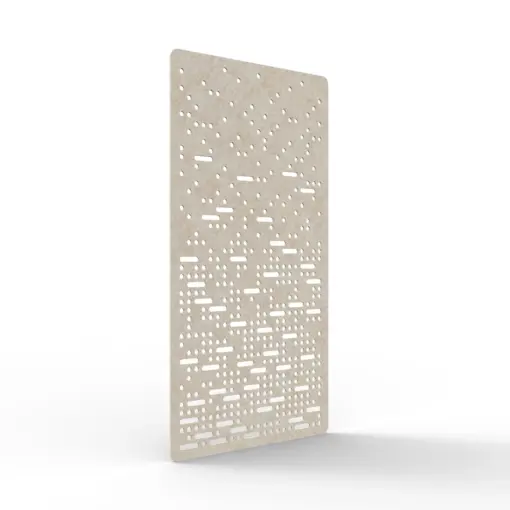

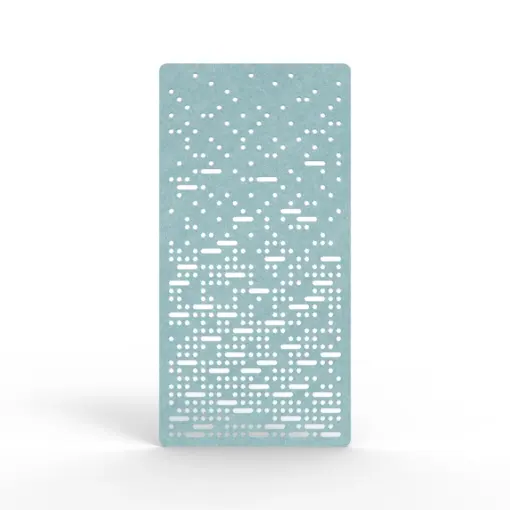

Acouline Pulse Hanging Acoustic Screen

Description

The Acouline Pulse Hanging Acoustic Screen brings a patterned suspended divider to busy open-plan environments. It helps distinguish focused work areas from communal spaces while introducing sound-absorbing PET material at the boundary between them. The result is a practical design option for offices, training areas and collaborative interiors.

Repeat the Pulse design alongside shared tables or use it as a feature beside breakout seating. The precision-cut openings preserve a sense of connection through the screen, allowing light and views between adjacent zones. Plan its position around the room’s activity areas and the clearances required below the suspended panel.

Each screen is 1200mm wide, with 2400mm or 2700mm height options and a choice of 12mm or 24mm thickness. The 100% polyester (PET) material has a supplier-listed NRC of 0.85. Choose the dimensions to suit the available ceiling height and planned clearance, then coordinate the screen with other ceiling acoustic treatments where additional overhead absorption is part of the room design.

The 14-colour Habitat palette lets you coordinate the screen with your interior finishes. Explore our acoustic screens for other formats suited to shared work and learning spaces. Rapidline lists a Group 1 fire classification under AS 5637.1 and a 10-year warranty. Ceiling-grid and solid-ceiling mounting options are available, with two saddle-clip kits matched to the selected panel thickness.

Key Features:

• Pulse precision-cut hanging acoustic screen for commercial interiors
• Creates a visual boundary while allowing light and sightlines through
• Sound-absorbing construction made from 100% polyester (PET)
• 1200mm wide with 2400mm or 2700mm height options
• Choice of 12mm or 24mm panel thickness
• Supplier-listed acoustic rating: NRC 0.85
• 14 Habitat colours for coordinated office and education fitouts
• Optional ceiling-grid or solid-ceiling saddle clips, matched to thickness
• Each mounting option includes the two required hanging kits
• Group 1 fire classification under AS 5637.1, as listed by Rapidline
• Backed by a 10-year warranty

Specifications:

• Material: 100% polyester (PET)
• Width: 1200mm
• Heights: 2400mm or 2700mm
• Thicknesses: 12mm or 24mm
• Acoustic rating: Supplier-listed NRC 0.85
• Fire classification: Group 1 (AS 5637.1), tested to AS ISO 9705-2003 (R2016), as listed by Rapidline
• Sale unit: One screen

Mounting Options:

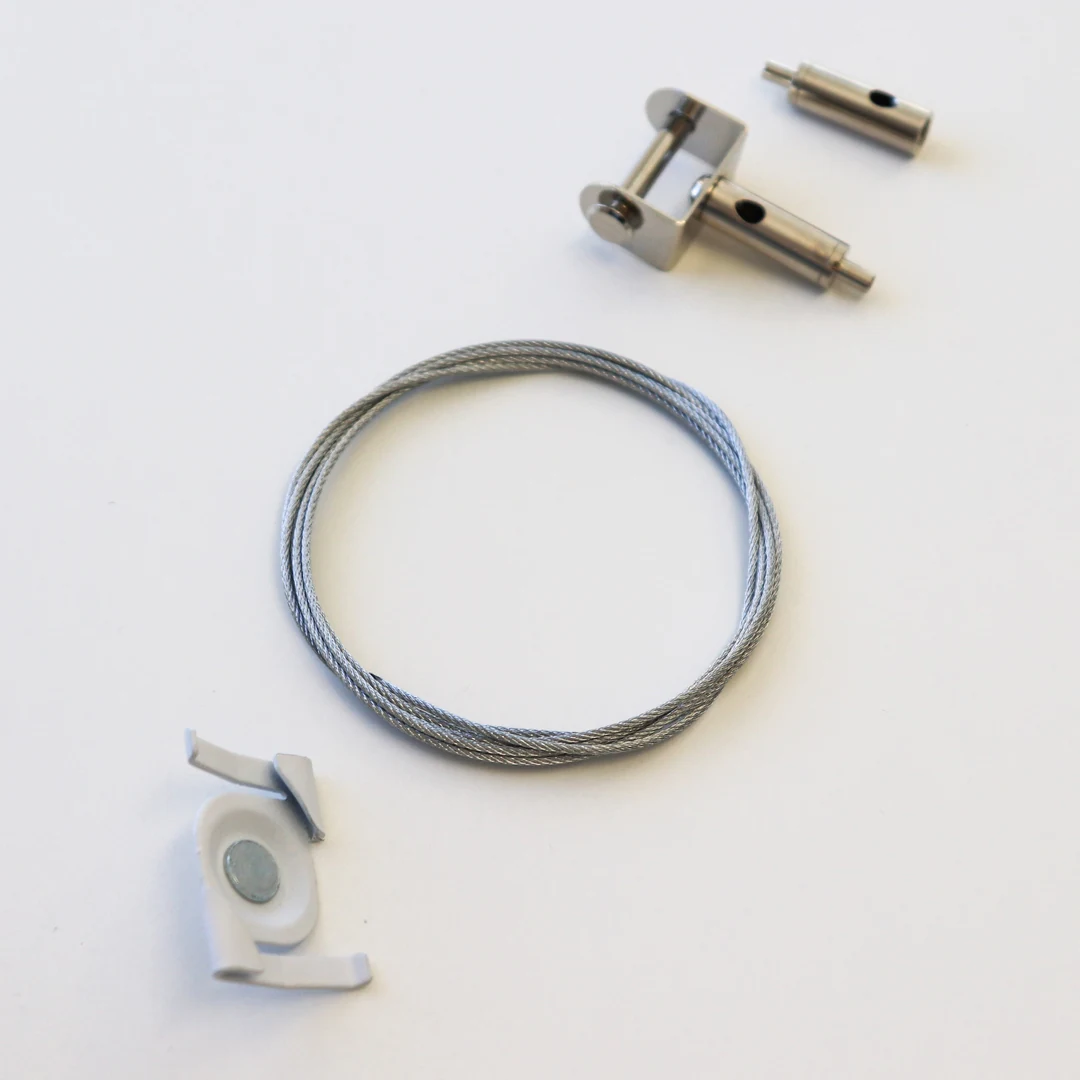

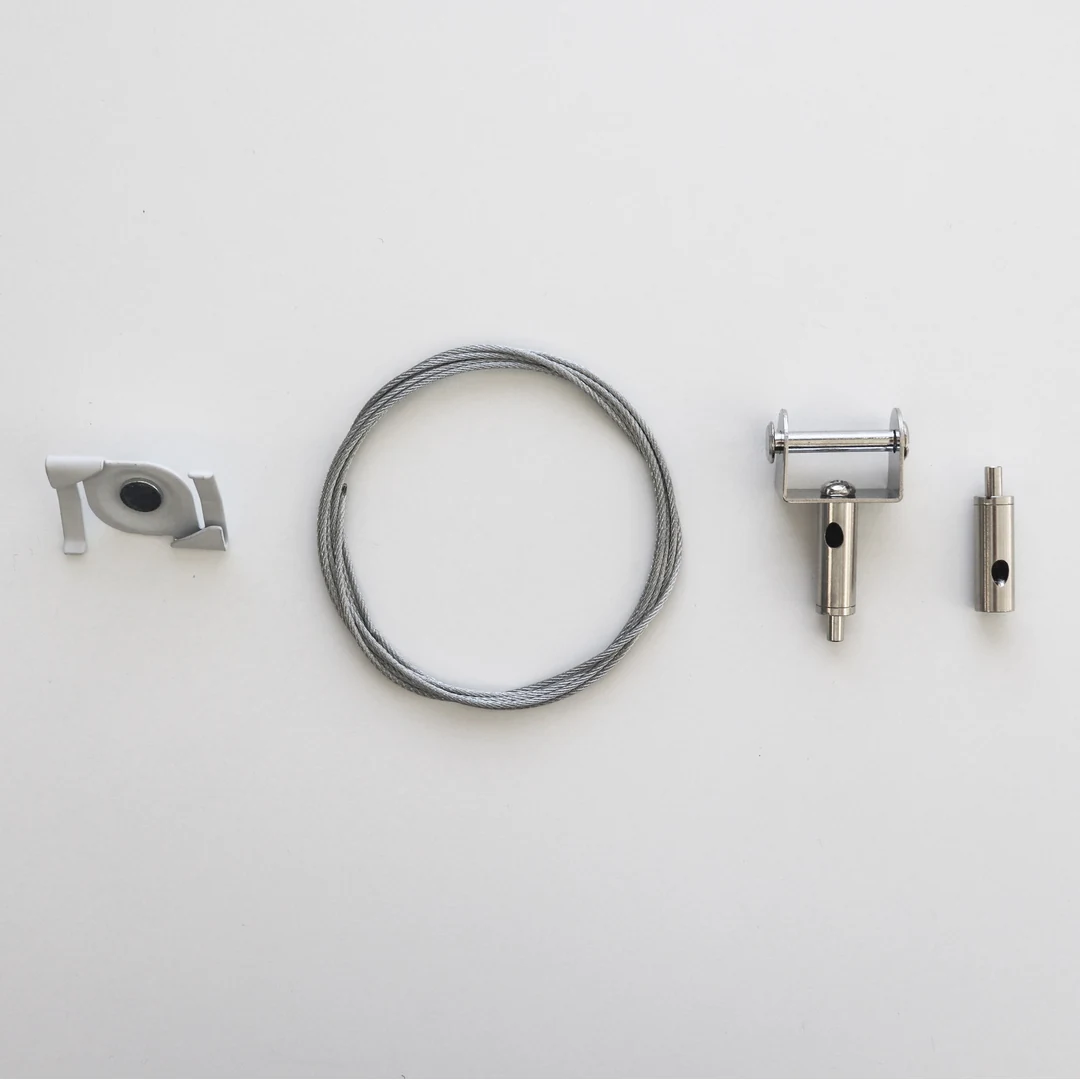

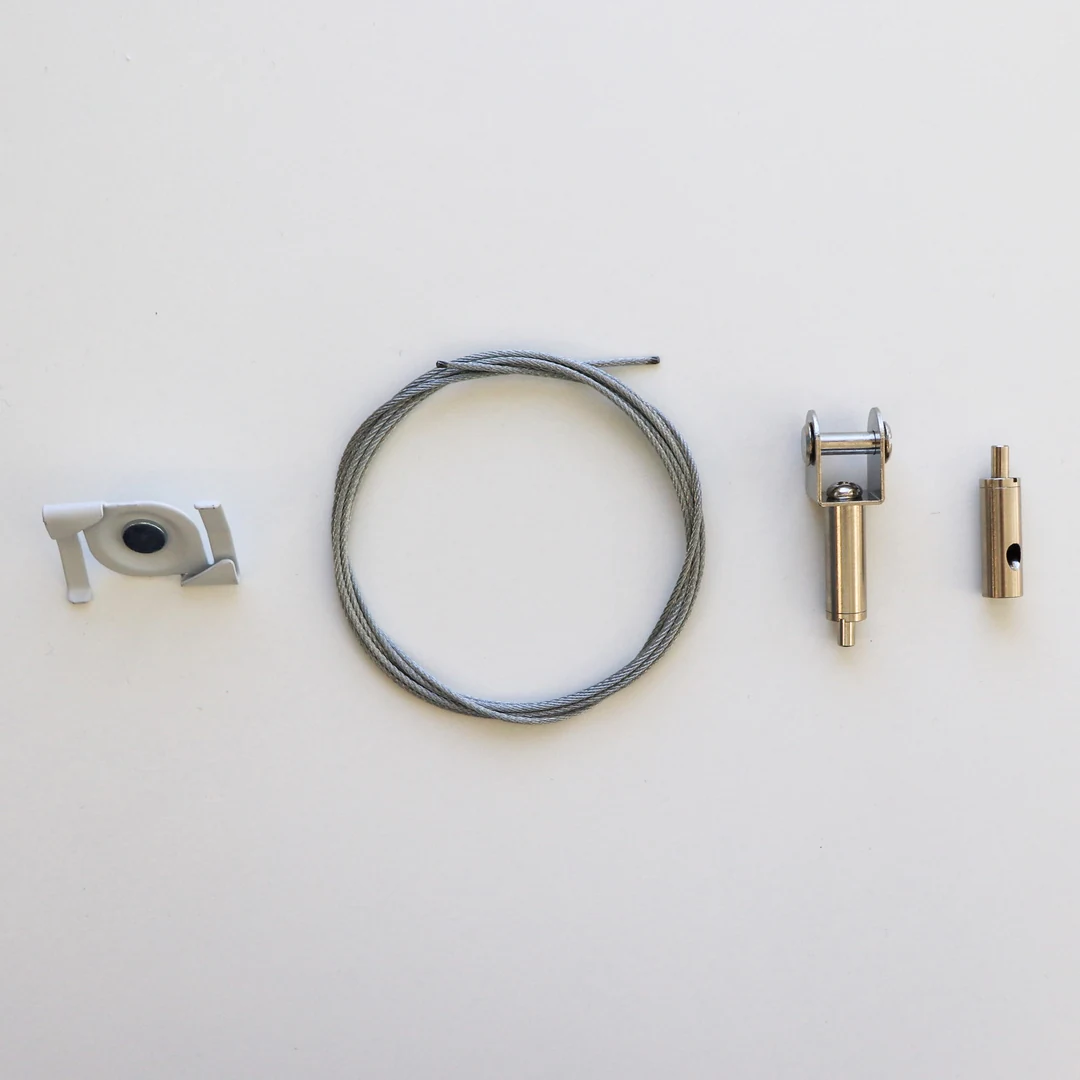

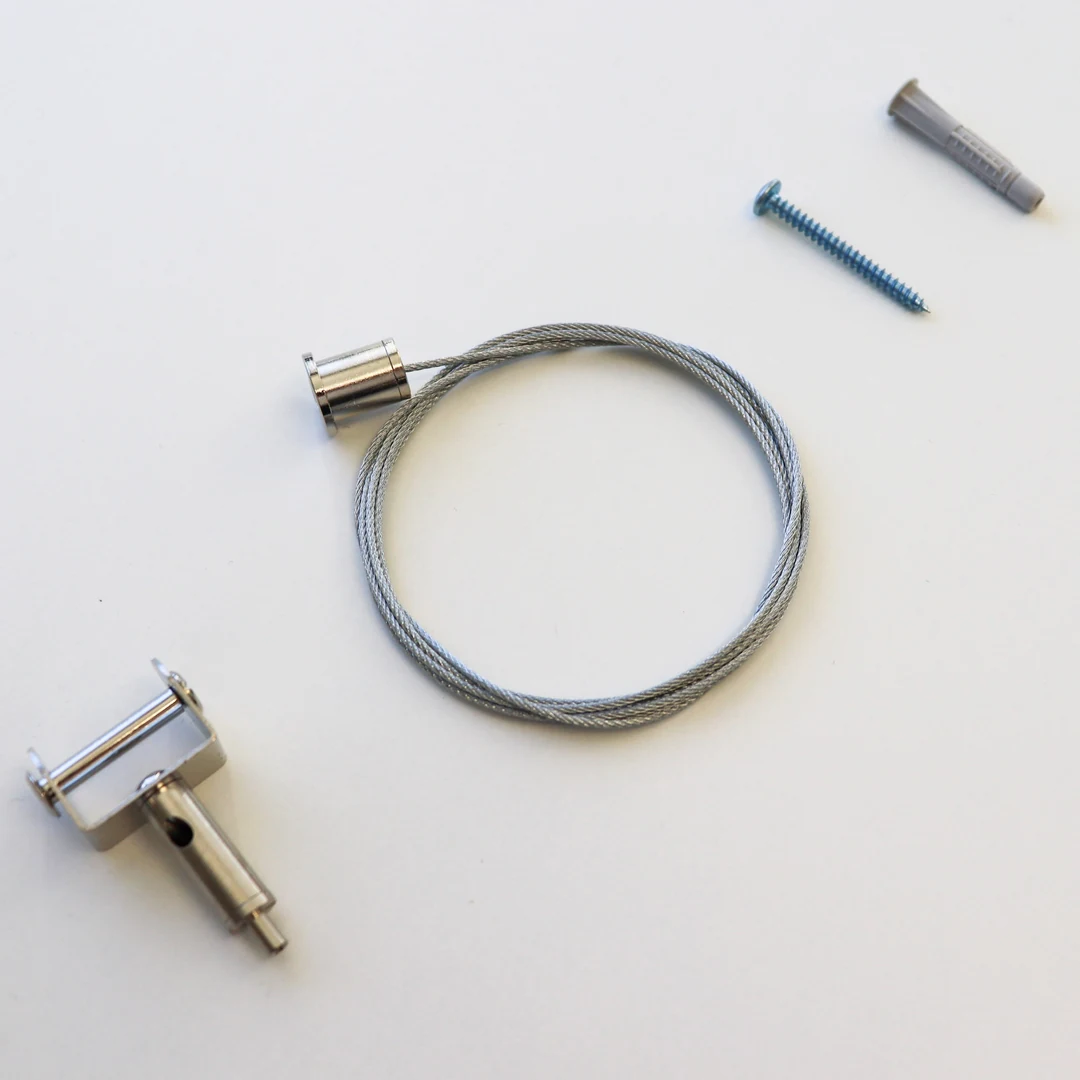

Each screen requires two hanging kits. Select No Mounts for the screen only, Ceiling Grid Saddle Clips for a suitable suspended grid, or Solid Ceiling Saddle Clips for a suitable solid-ceiling installation. The mounting option adds two matching kits to the screen price.

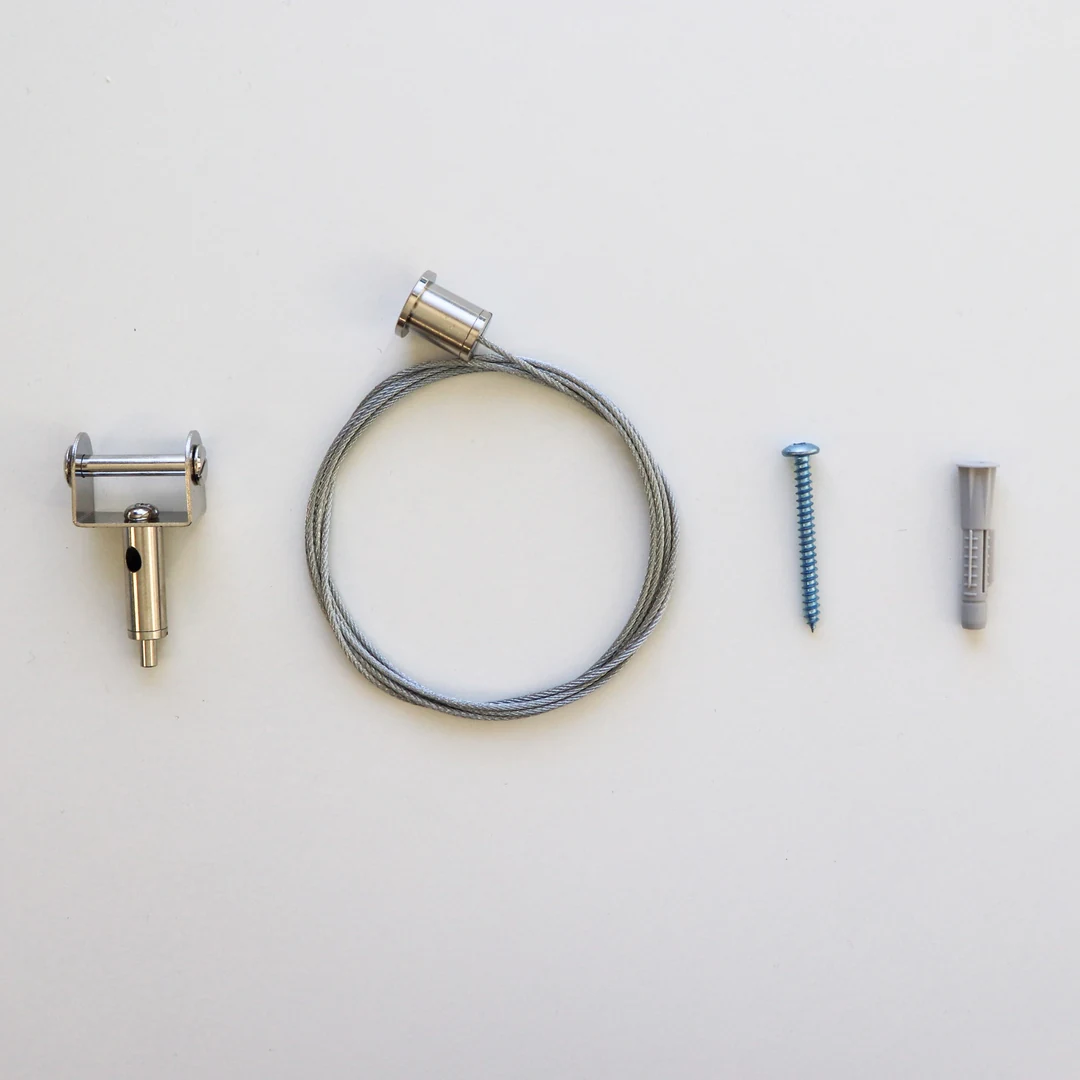

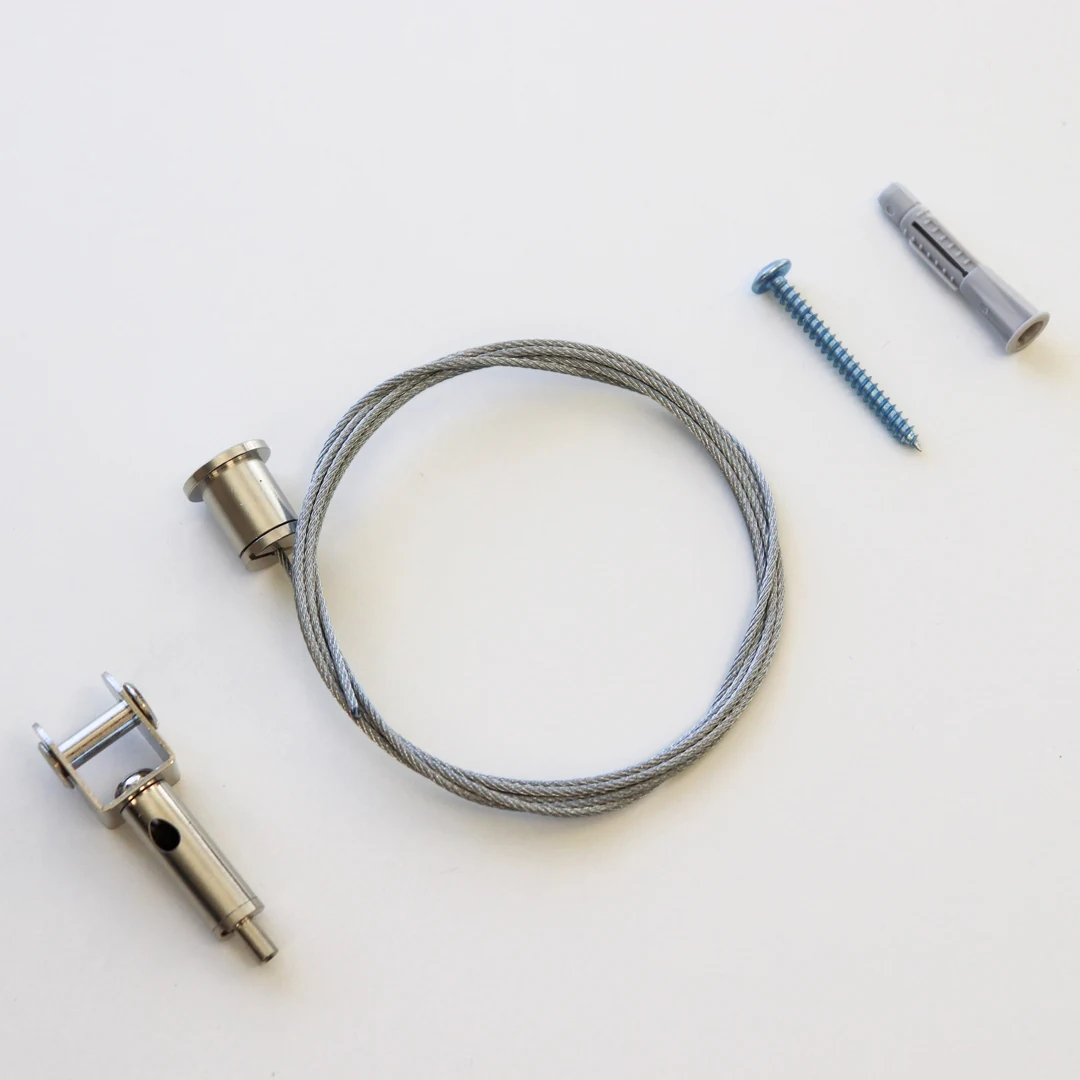

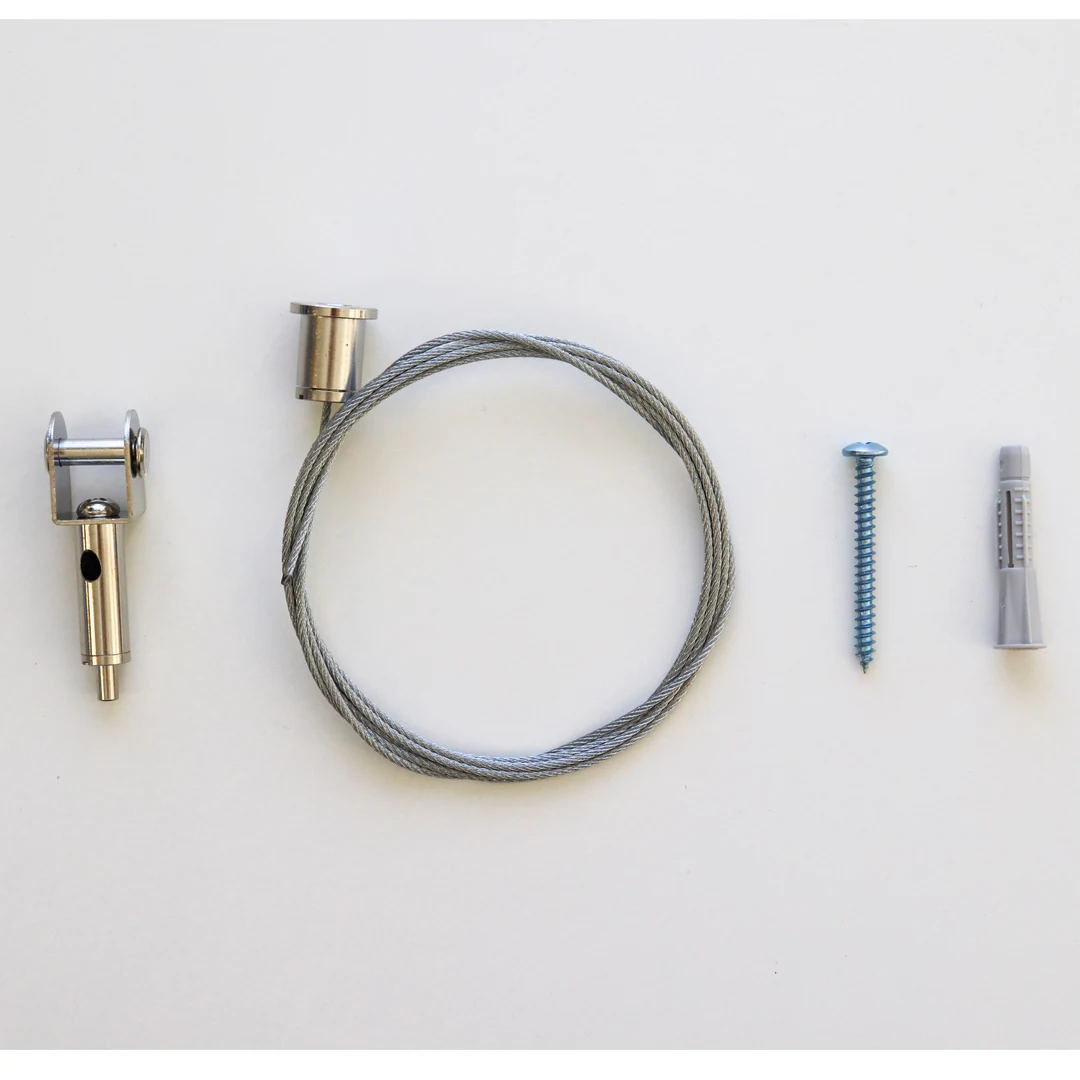

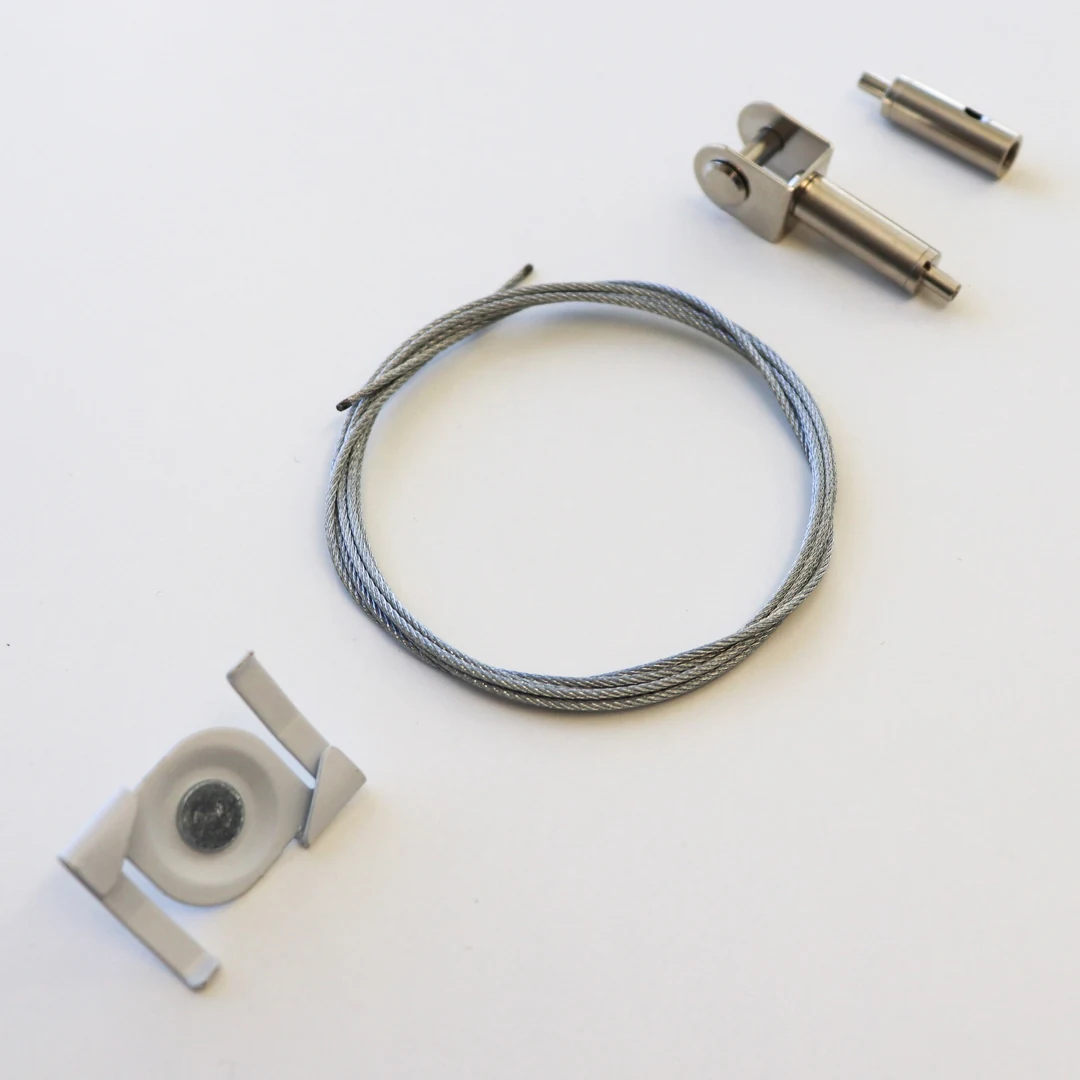

The 12mm screen options use AH-CGSAD12SL or AH-STASAD12SL. The 24mm options use AH-CGSAD24SL or AH-STASAD24SL. Fixings must suit the ceiling substrate and load requirements.

For rooms combining open work areas, meeting zones and displays, explore our acoustic solutions for shared spaces to plan the remaining treatment.

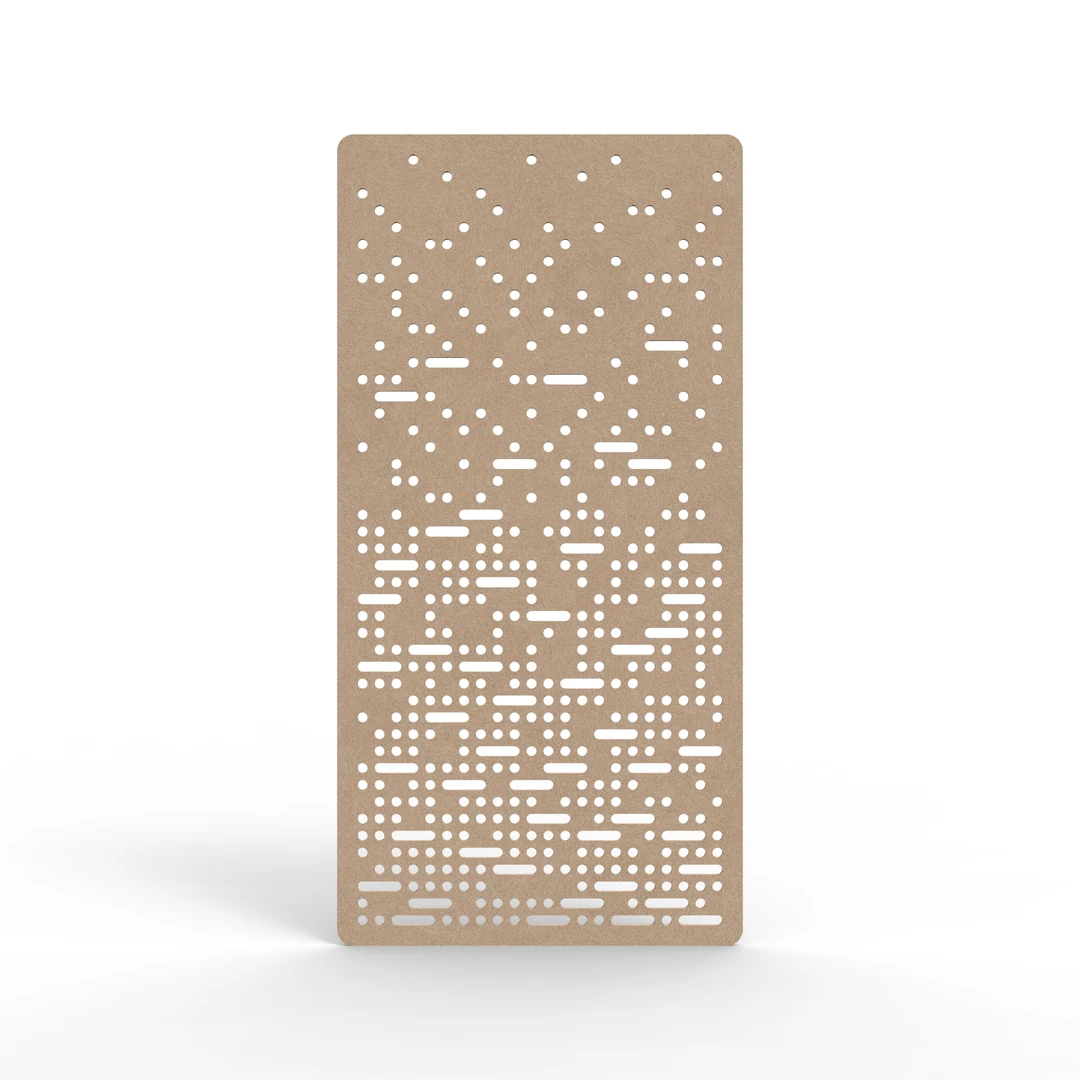

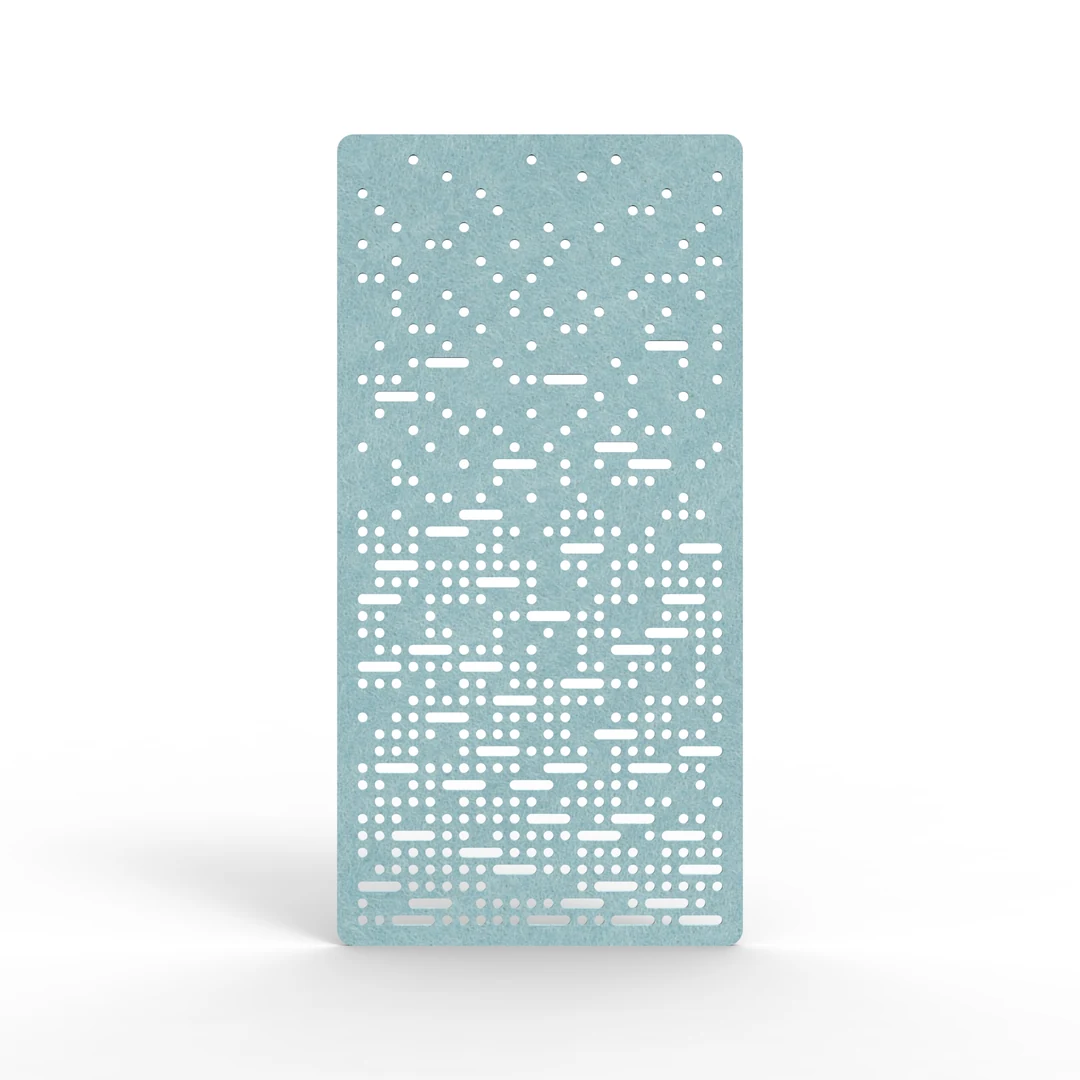

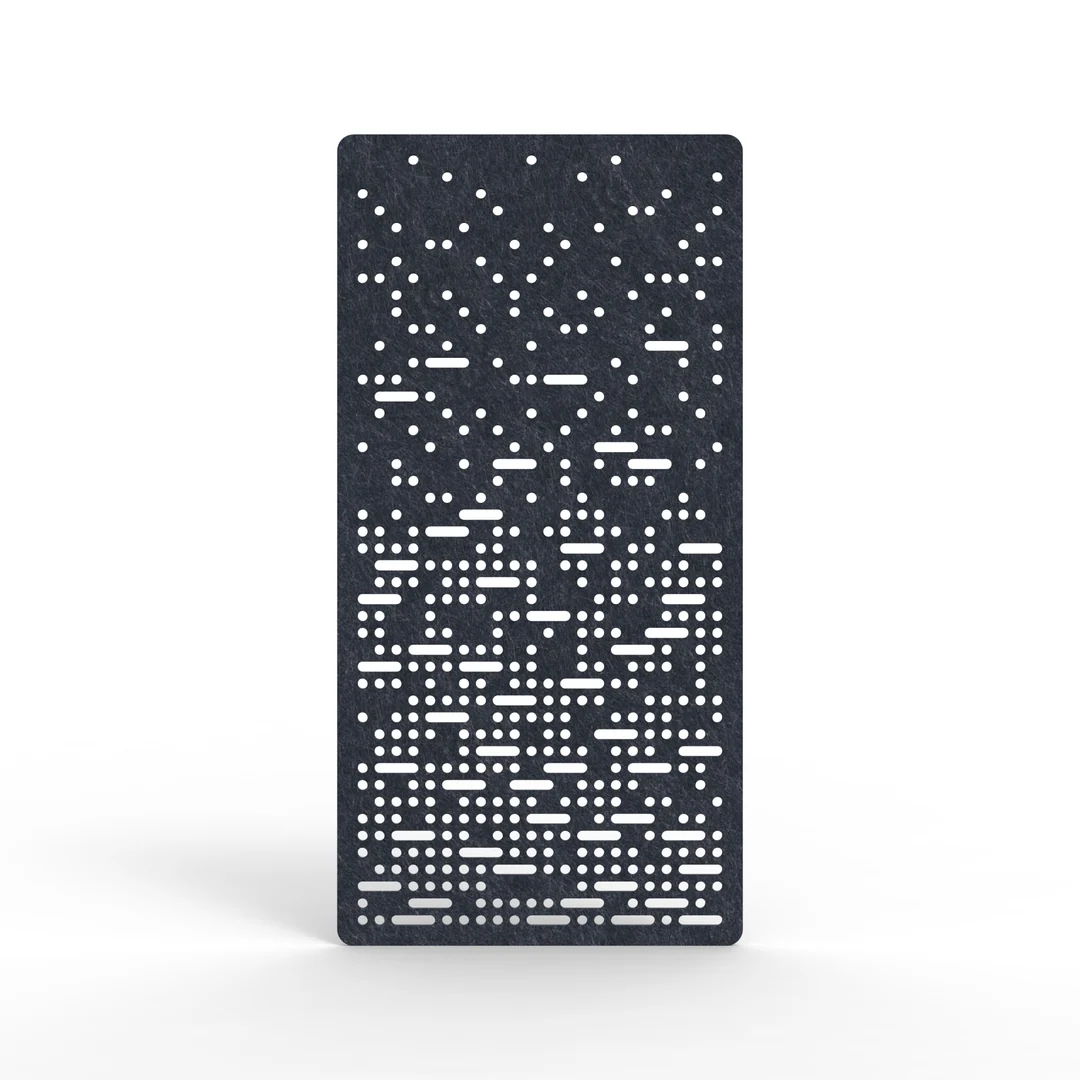

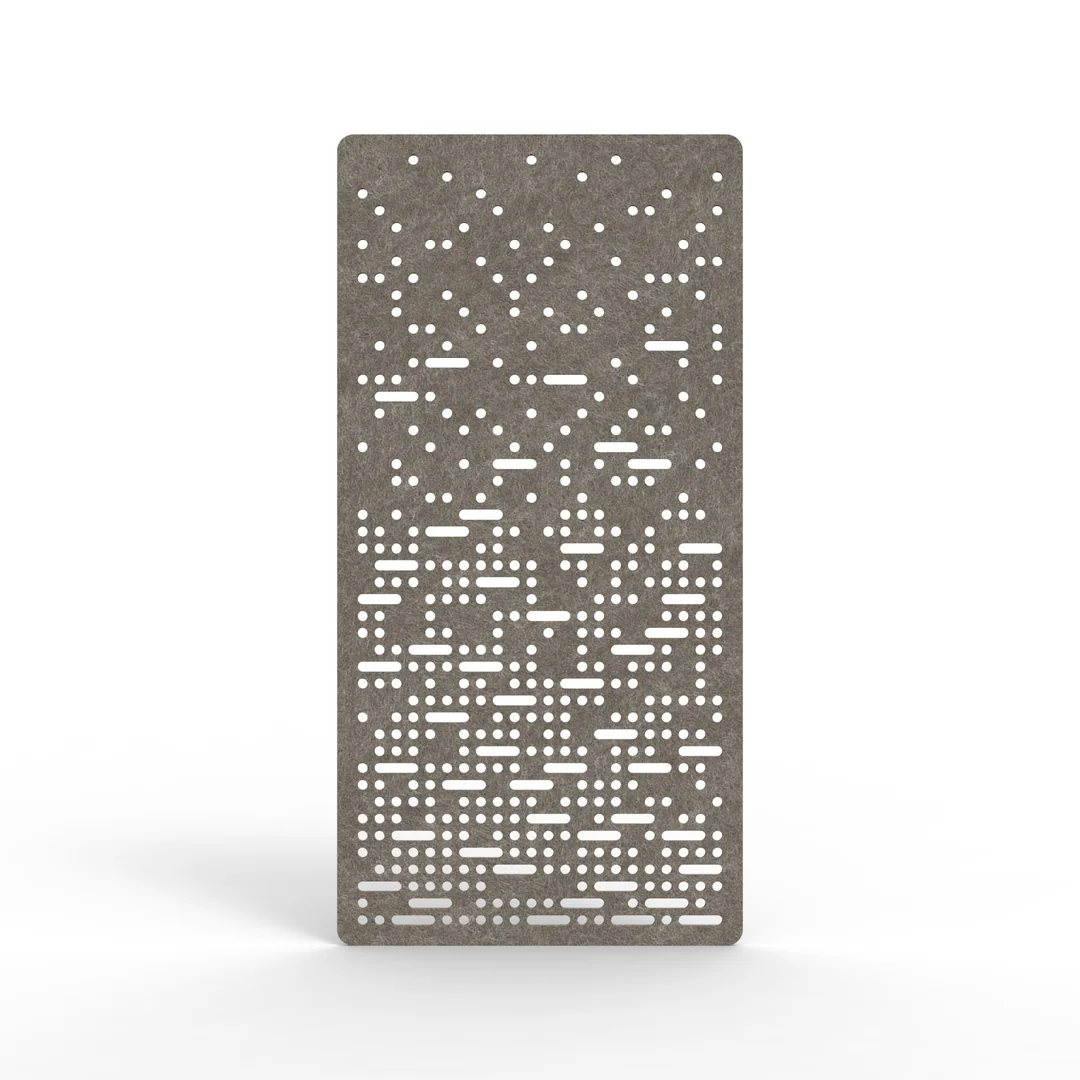

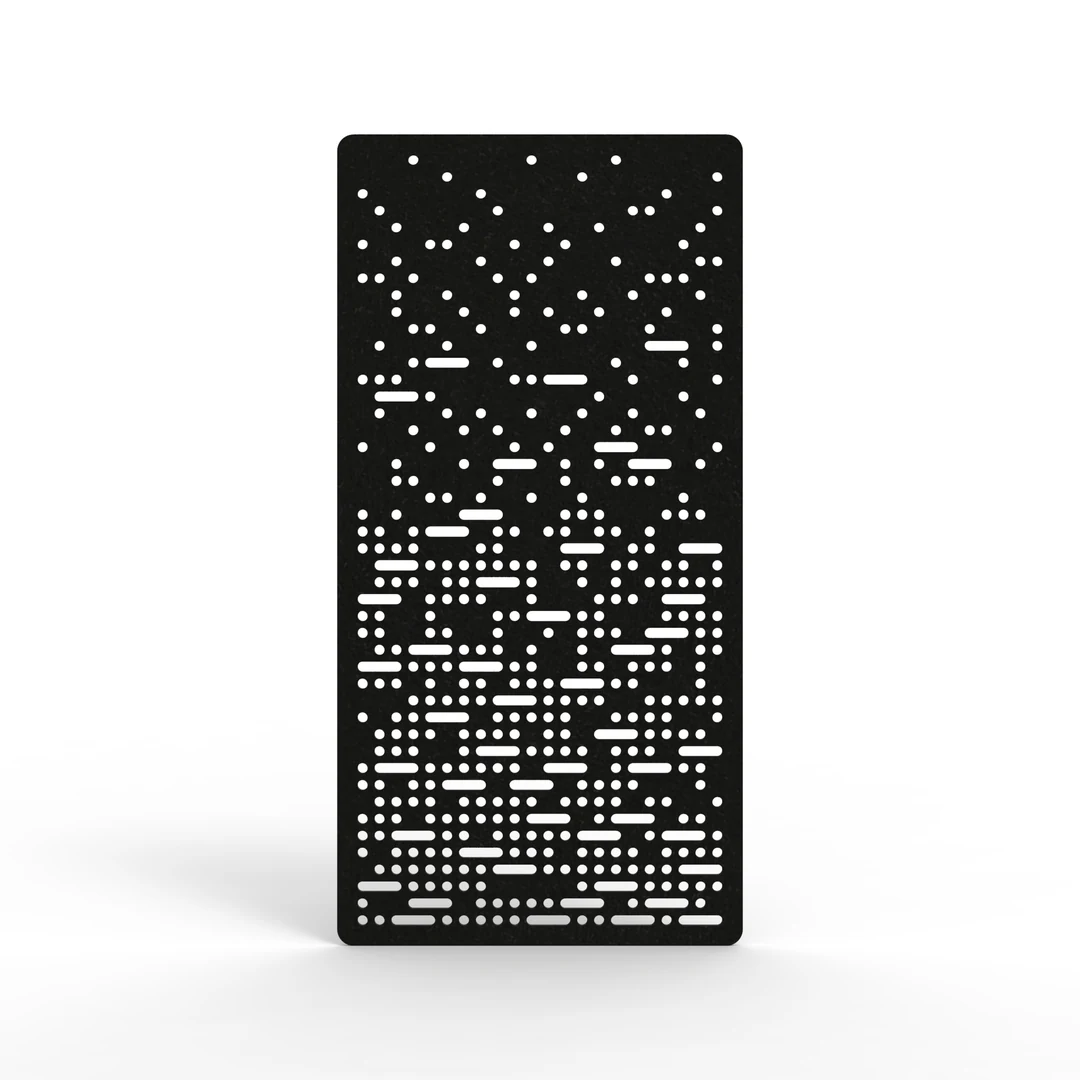

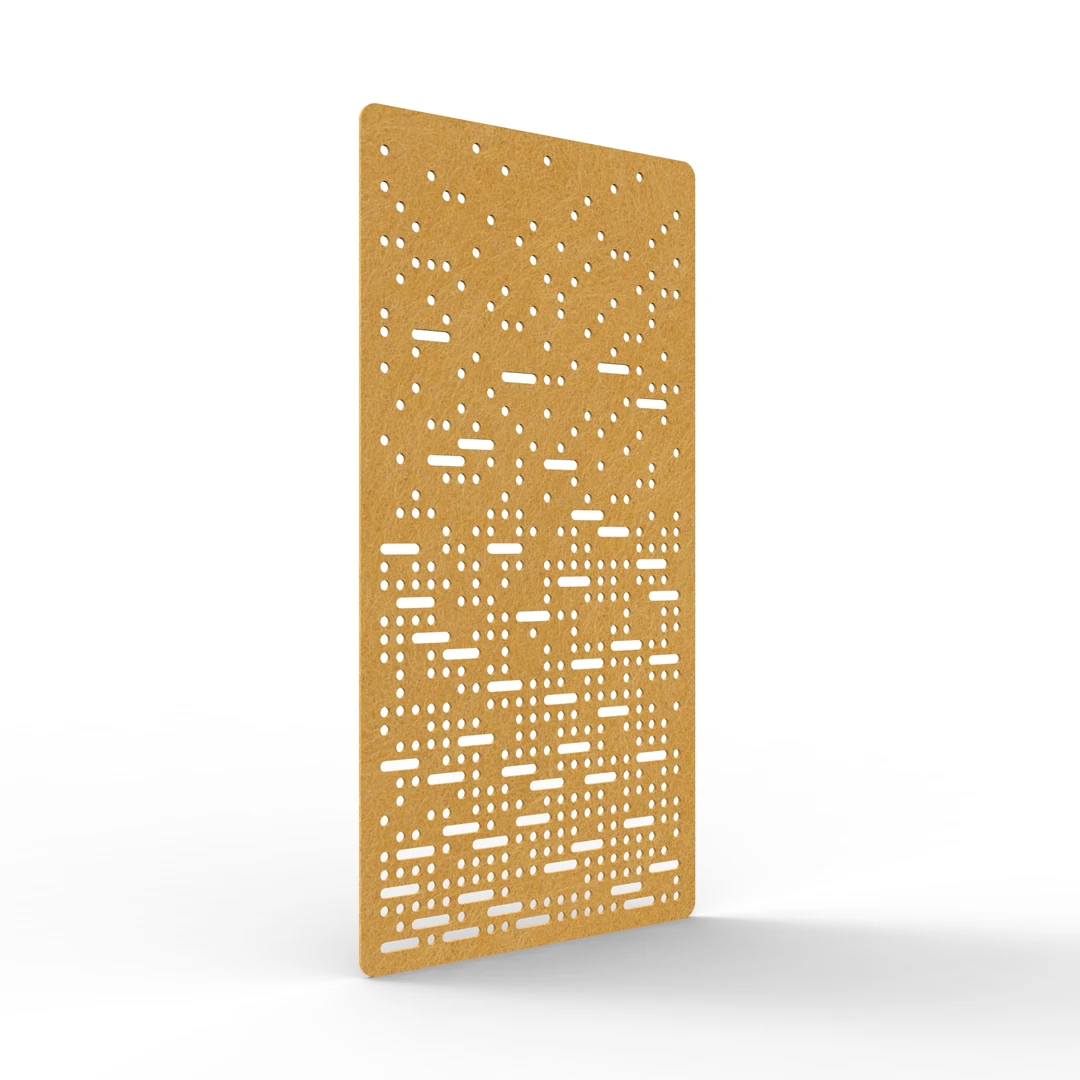

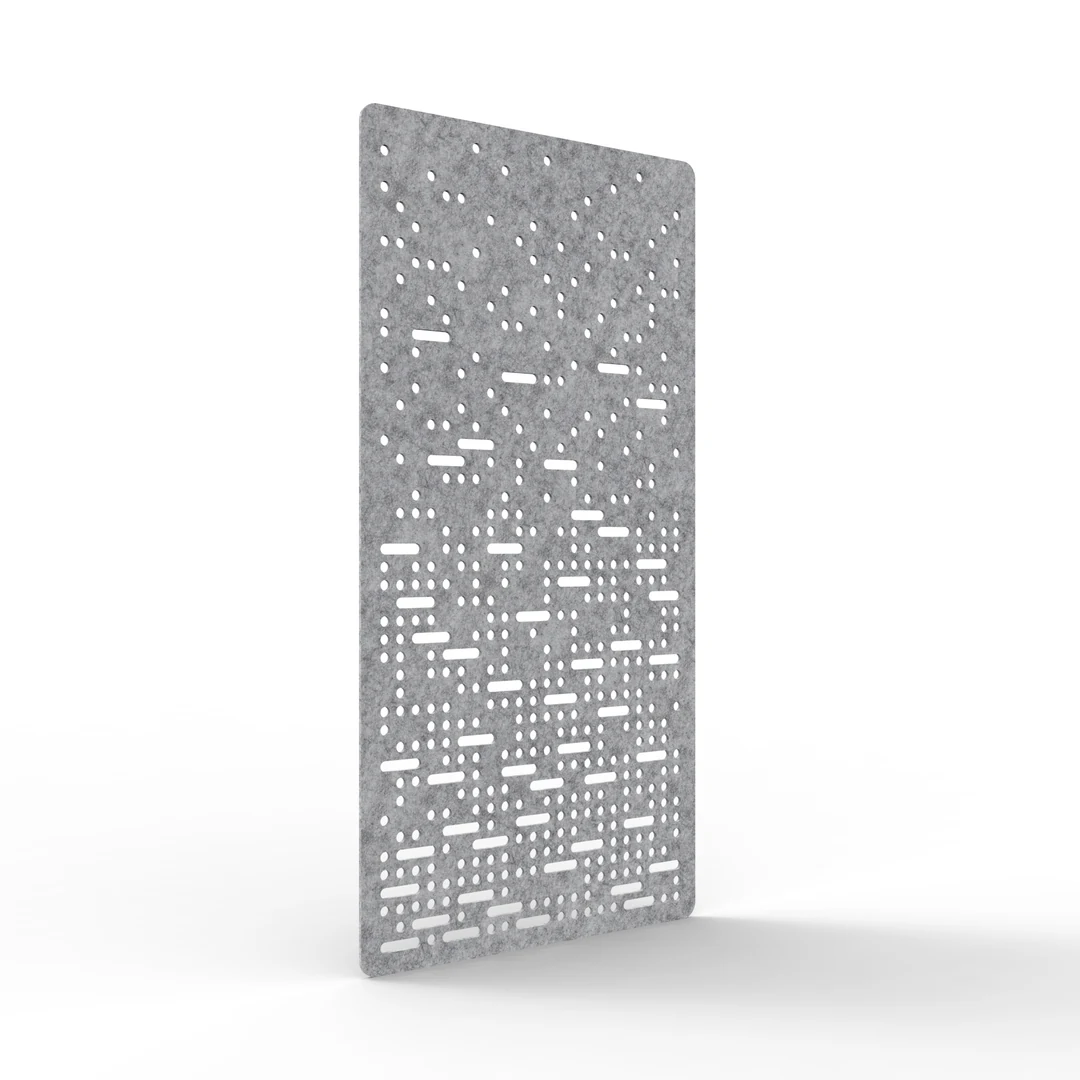

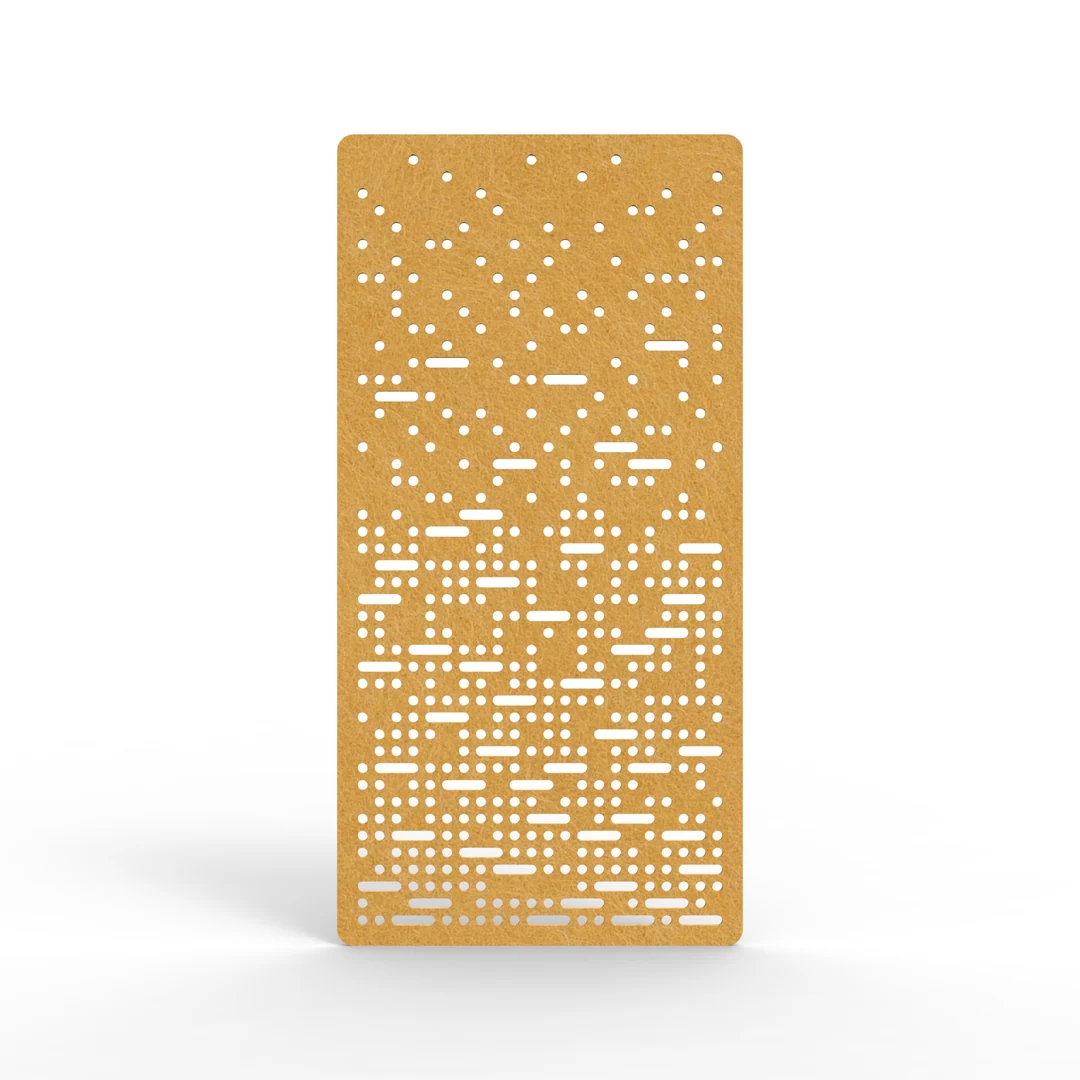

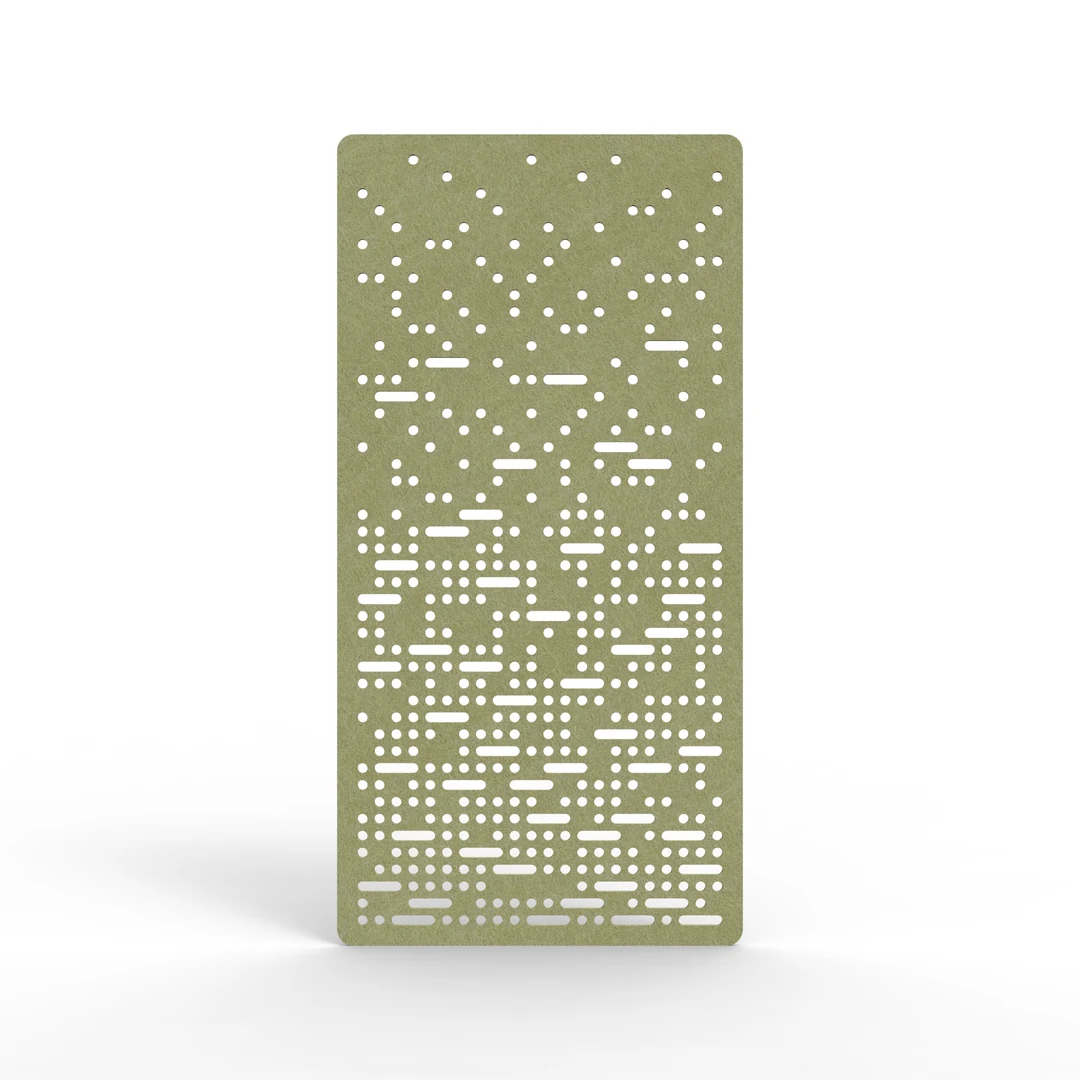

Images show representative sizes and colour examples from this product range. Refer to your selected dimensions when ordering.
