Name: Woven Image Fluid Acoustic Panels
SKU: EP-FLUID
Price: 619 AUD
Availability: InStock

Woven Image Fluid Acoustic Panels

$619.00

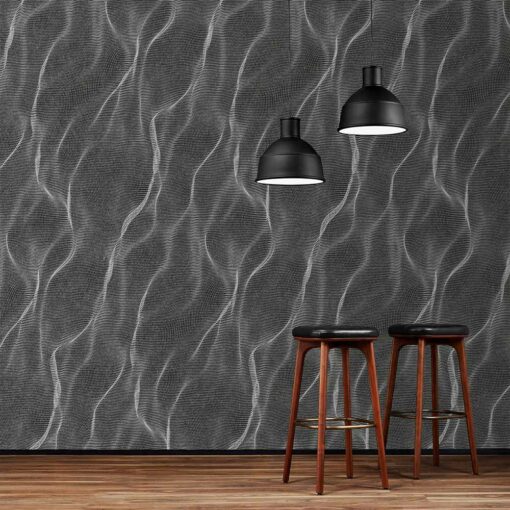

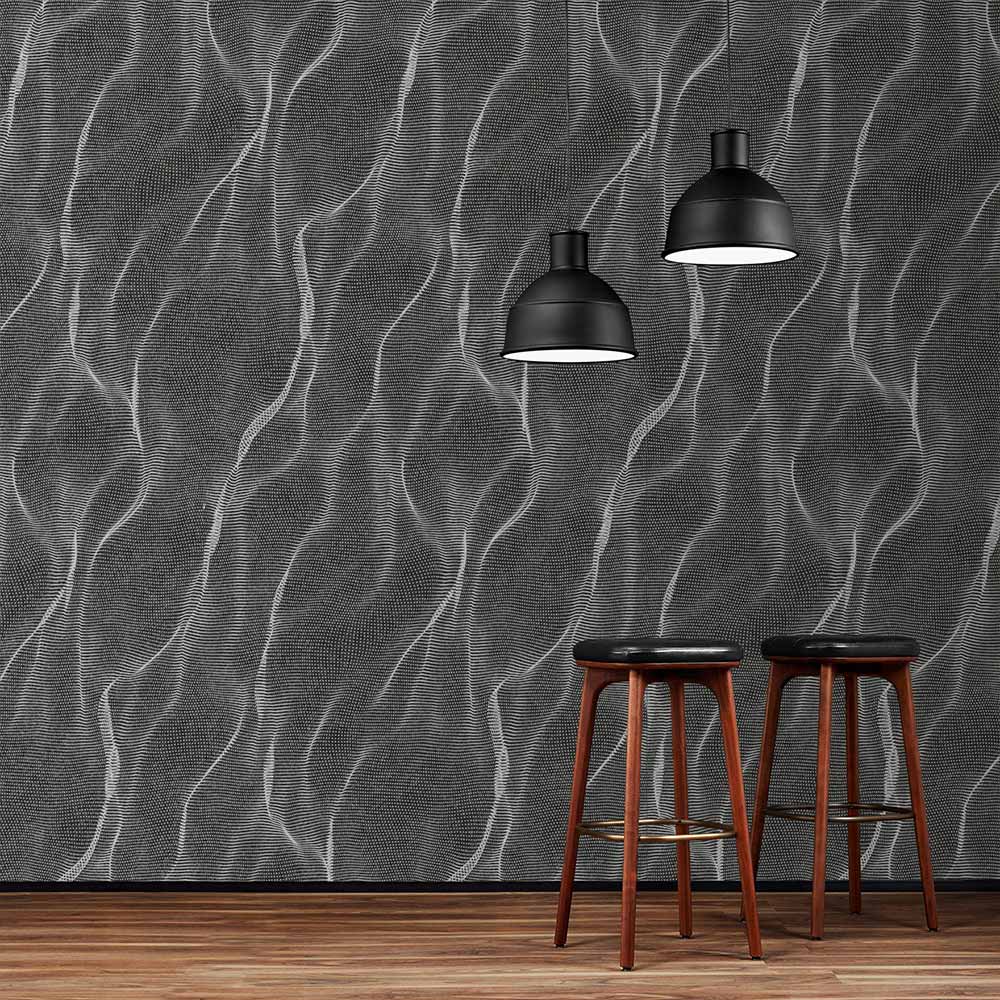

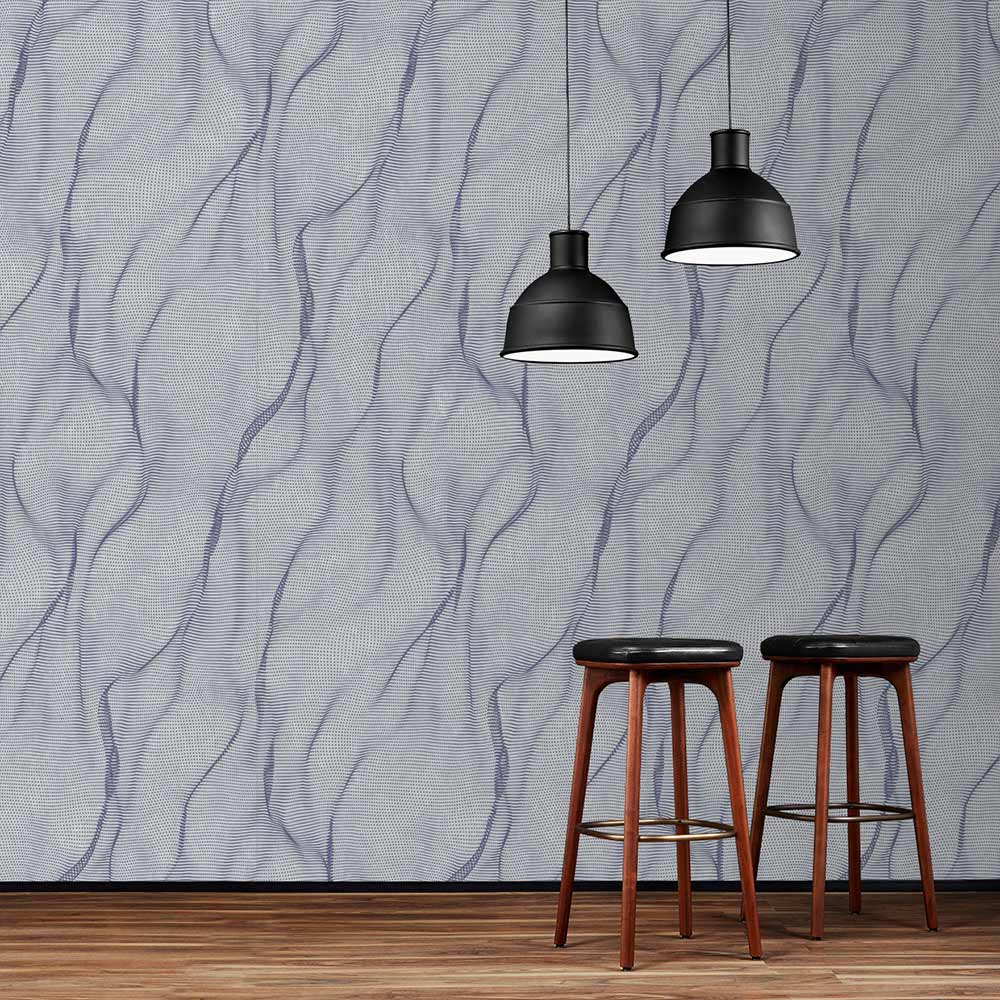

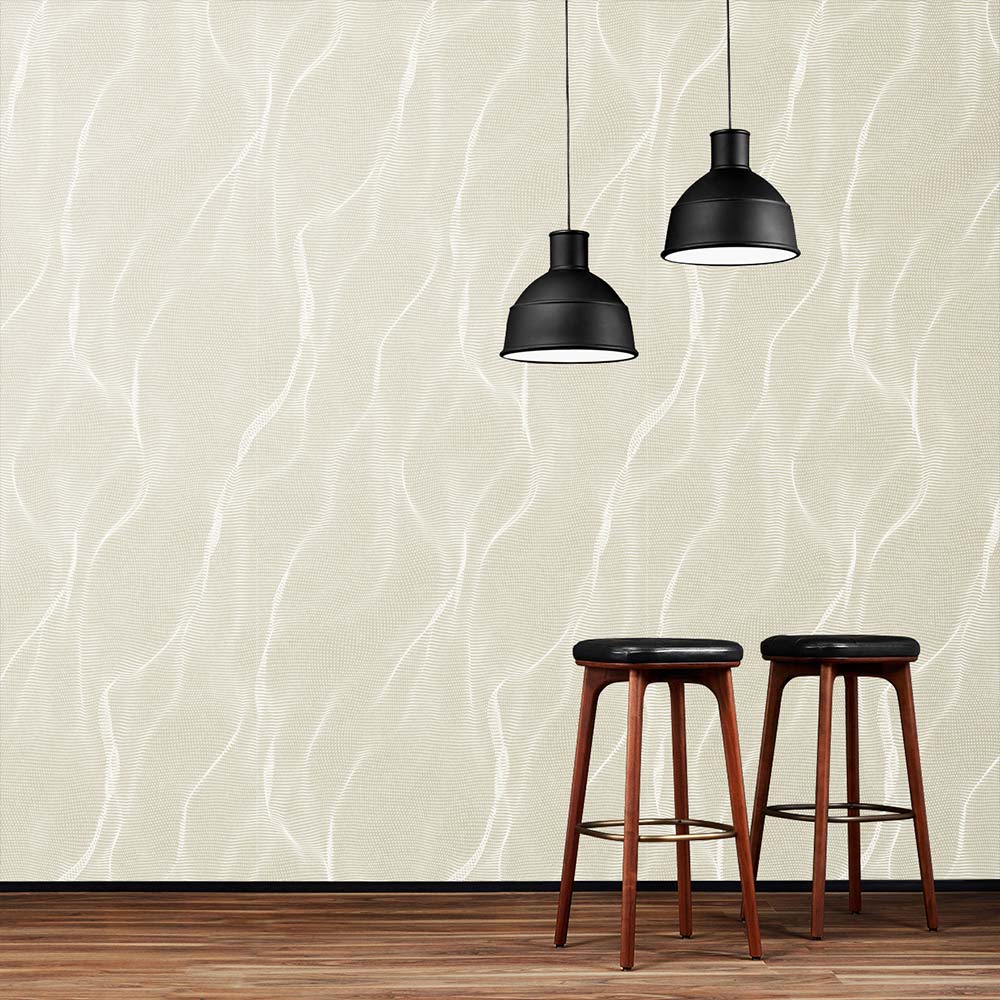

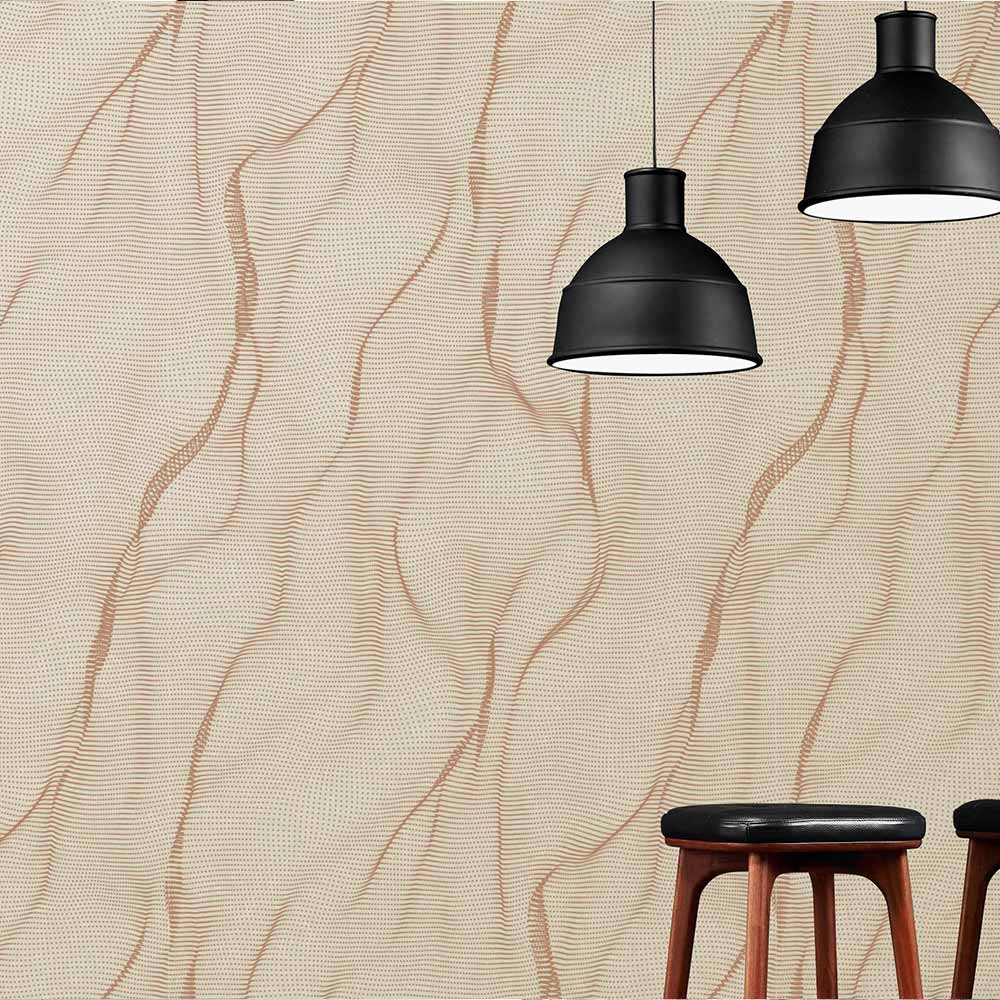

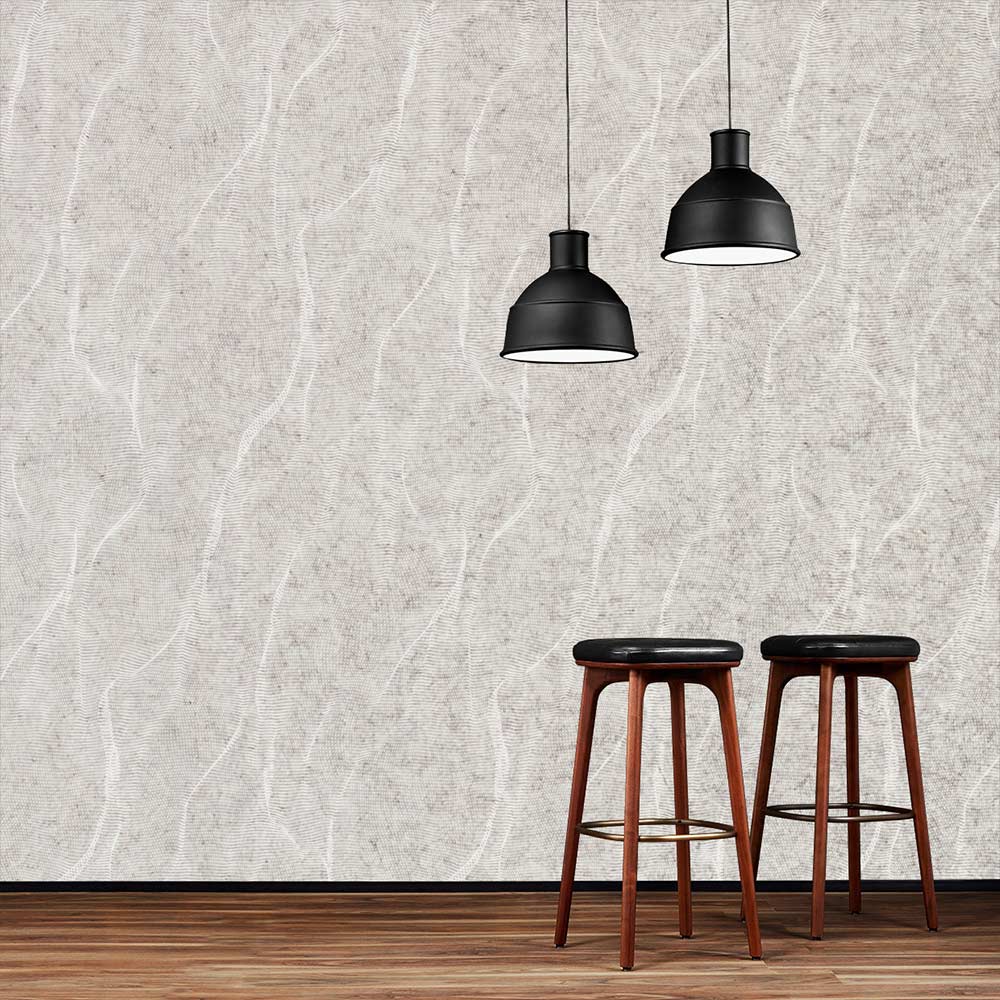

A printed design by Michael Young on EchoPanel acoustic panels – evoking the ocean, a multitude of dots flow across the panel to create a wave-like effect from afar
Wide range of colours – both contrasting and tonal
Minimum order of 5 panels

Add to Quote

Buying in bulk?
Call us on 1300 849 152

Description

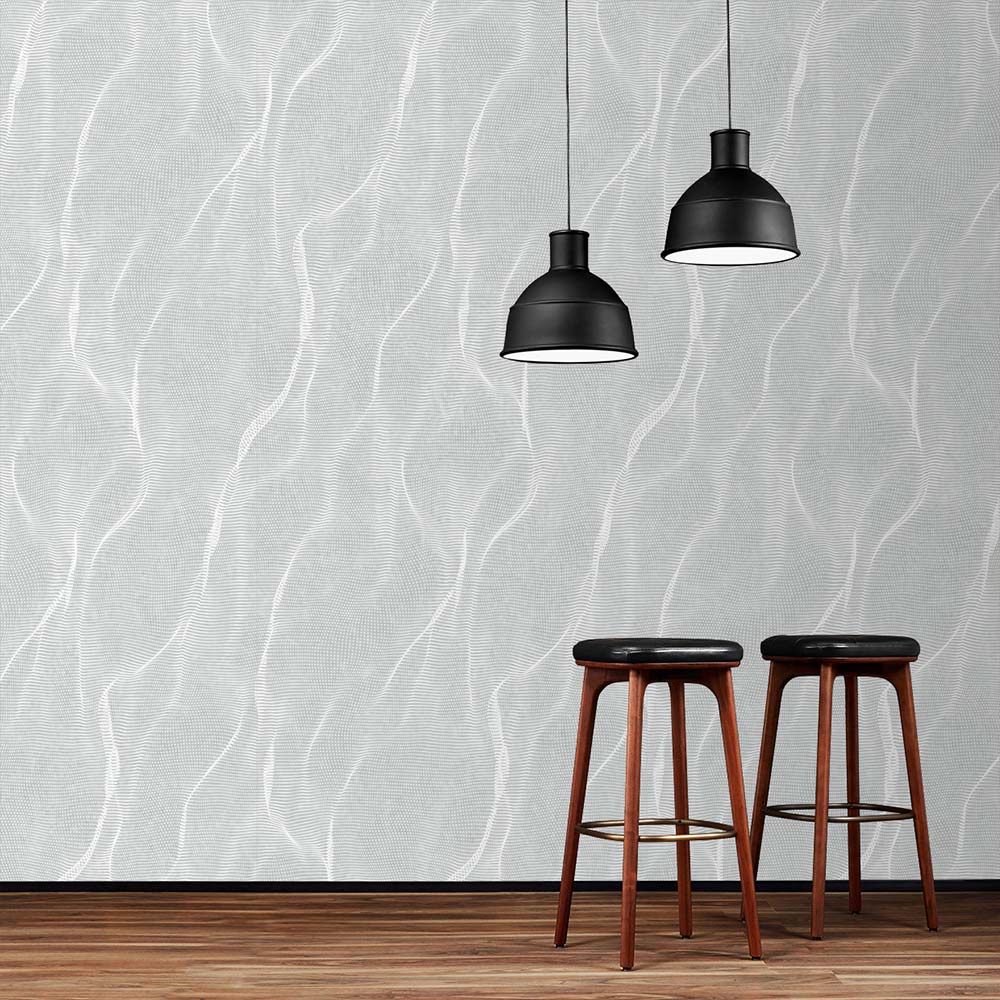

Woven Image Fluid is one of three acoustic panel designs created in collaboration with Michael Young design studio. The striking design evokes the movement of the ocean, achieved through a multitude of dots that flow across the panel to create a wave-like effect from afar. The colour palette includes contrasting or subtle tone-on-tone colourways. Panels are printed with a border allowing for trimming, for easy installation.

Fluid is printed on Woven Image EchoPanel, a specially designed acoustic material made from 100% PET (60% post-consumer recycled). It is highly durable while also being extremely lightweight and is low-VOC (low in chemical emissions) and so maintains indoor air quality.

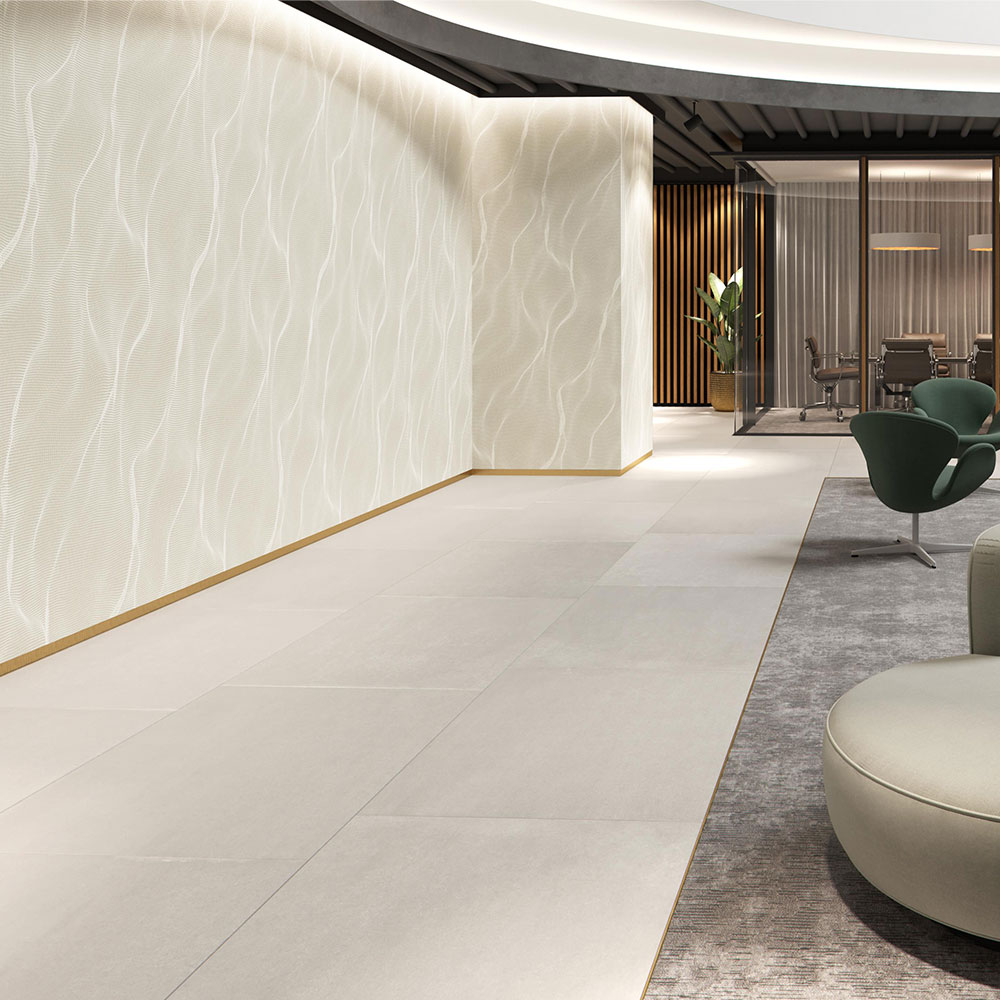

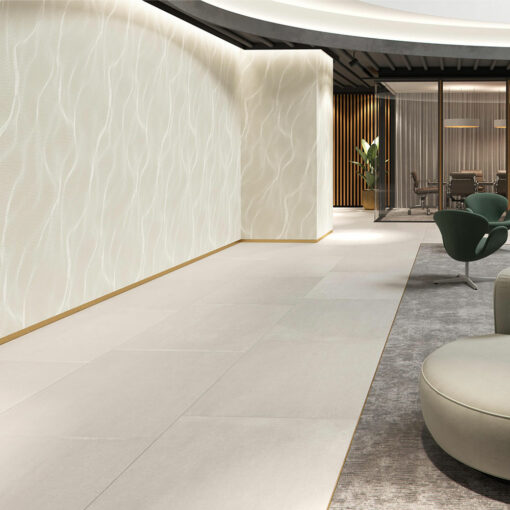

Create peaceful reception areas, productive working environments, and focused meeting rooms with the acoustic treatment provided by Woven Image Fluid Acoustic Panels. The price includes 1 panel measuring 2800 x 1200mm, with a minimum order of 5 panels.

Features

Excellent acoustic performance
Available in a wide range of colours
Highly durable and lightweight material, Woven Image EchoPanel
100% PET – 60% post-consumer recycled material
Length: 2800mm (+/- 2mm), Width: 1200mm (+/- 2mm), Thickness: 12mm (+/- 7%)
Pattern repeat: horizontal – 1180mm, vertical – 2780mm
Fire test rated (see spec sheet for more information)
Sound absorption (12mm): NRC 0.45 (no air gap), NRC 0.60 (20mm air gap), NRC 0.75 (50mm air gap)
10 year life expectancy

This product has a 4 week production lead time.

Reviews

There are no reviews yet.

Be the first to review “Woven Image Fluid Acoustic Panels”

Downloads

EchoPanel® Fluid Spec Sheet
